General Description
SM89516 General Description
The SM89516 series product is an 8 - bit single chipmicro controller with 64KB flash & 1KB RAM embedded. It is a derivative of the 8052 micro controller family. With its hardware features and powerful instruction set, it's straight forward to make it a versatile and cost effective controller for those applications which demand up to 32 I/O pins for PDIP package or up to 36 I/O pins for PLCC/QFP package, or applications which need up to 64KB memory either for program or for data or mixed. To program the on-chip flash memory, a commercial writer is available to do it in parallel programming method.
SM89516 Features
·Working voltage: 3.0V ~ 3.6V For L Version
4.5V ~ 5.5V For C Version
·General 8052 family compatible
·12 clocks per machine cycle
·64 KB internal flash memory
·1024 bytes data RAM
·Three 16 bit timers/counters
·Four 8-bit I/O ports for PDIP package
·Four 8-bit I/O ports + one 4-bit I/O ports for PLCC or QFP package
·Full duplex serial channel
·Bit operation instruction
·Page free jumps
·8-bit unsigned division
·8-bit unsigned multiply
·BCD arithmetic operations
·Direct addressing
·Indirect addressing
·Nested interrupts
·Two priority level interrupts
·A serial I/O port
·Power save modes: Idle mode and power down mode
·Code protection function
·One watch dog timer (WDT)
·Low EMI (inhibit ALE)
4.5V ~ 5.5V For C Version
·General 8052 family compatible
·12 clocks per machine cycle
·64 KB internal flash memory
·1024 bytes data RAM
·Three 16 bit timers/counters
·Four 8-bit I/O ports for PDIP package
·Four 8-bit I/O ports + one 4-bit I/O ports for PLCC or QFP package
·Full duplex serial channel
·Bit operation instruction
·Page free jumps
·8-bit unsigned division
·8-bit unsigned multiply
·BCD arithmetic operations
·Direct addressing
·Indirect addressing
·Nested interrupts
·Two priority level interrupts
·A serial I/O port
·Power save modes: Idle mode and power down mode
·Code protection function
·One watch dog timer (WDT)
·Low EMI (inhibit ALE)

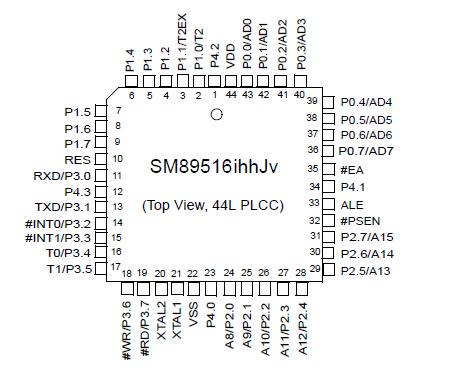

SM89516 Connection Diagram
