SN54ABT18245A

Features: *Members of the Texas Instruments SCOPEE Family of Testability Products* Members of the Texas Instruments WidebusE Family* Compatible With the IEEE Standard 1149.1-1990 (JTAG) Test Access Port andBoundary-Scan Architecture* SCOPEE Instruction Set IEEE Standard 1149.1-1990 RequiredInstruc...

product image

SN54ABT18245A Picture
See larger image
SeekIC No. : 004496309 Detail

SN54ABT18245A: Features: *Members of the Texas Instruments SCOPEE Family of Testability Products* Members of the Texas Instruments WidebusE Family* Compatible With the IEEE Standard 1149.1-1990 (JTAG) Test Access ...

SN54ABT18245A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN54ABT18245A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Members of the Texas Instruments
   SCOPEE Family of Testability Products
* Members of the Texas Instruments
   WidebusE Family
* Compatible With the IEEE Standard
   1149.1-1990 (JTAG) Test Access Port and
   Boundary-Scan Architecture
* SCOPEE Instruction Set
    IEEE Standard 1149.1-1990 Required
   Instructions, CLAMP and HIGHZ
   Parallel-Signature Analysis at Inputs
   Pseudo-Random Pattern Generation
    From Outputs
   Sample Inputs/Toggle Outputs
   Binary Count From Outputs
   Device Identification
   Even-Parity Opcodes
* State-of-the-Art EPIC-II BE BiCMOS Design
   Significantly Reduces Power Dissipation
* Packaged in Plastic Shrink Small-Outline
   (DL) and Thin Shrink Small-Outline (DGG)
   Packages and 380-mil Fine-Pitch Ceramic
   Flat (WD) Packages


Pinout

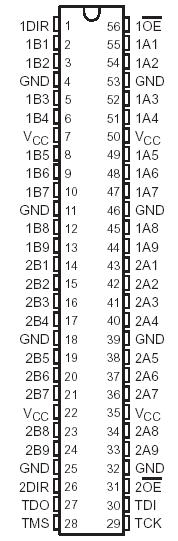

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . .0.5 V to 7 V
Input voltage range, VI (except I/O ports) (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . .0.5 V to 7 V
Input voltage range, VI (I/O ports) (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . .0.5 V to 5.5 V
Voltage range applied to any output in the high state or power-off state, VO . . . . . . . . . .  . . .0.5 V to 5.5 V
Current into any output in the low state, IO:SN54ABT18245A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96 mA
                                                                      SN74ABT18245A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .128 mA
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .18 mA
Output clamp current, IOK (VO < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . .50 mA
Continuous current through VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .576 mA
Continuous current through GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . .1152 mA
Package thermal impedance, JA (see Note 2): DGG package  . . . . . . . . . . . . . . . . . . . . . . . . ...... . . . . .81/W
                                                                           DL package  . . . . . . . . . . . . . . . . . . . . . . . . . . ... . . . . . .74/W
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . .65 to 150


Description

The SN54ABT18245A scan test devices with 18-bit bus transceivers are members of the Texas Instruments SCOPEE testability integratedcircuit family. SN54ABT18245A supports IEEE Standard 1149.1-1990 boundary scan to facilitate testing of complex circuit-board assemblies. Scan access to the test circuitry is accomplished via the 4-wire test access port (TAP) interface.

In the normal mode, SN54ABT18245A is 18-bit noninverting bus transceivers. They can be used either as two 9-bit transceivers or one 18-bit transceiver. The test circuitry of SN54ABT18245A can be activated by the TAP to take snapshot samples of the data appearing at the device pins or to perform a self-test on the boundary-test cells. Activating the TAP in the normal mode does not affect the functional operation of the SCOPEE bus transceivers.

Data flow of SN54ABT18245A is controlled by the direction-control (DIR) and output-enable (OE) inputs. Data transmission is allowed from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at DIR. OE can be used to disable the device so that the buses are effectively isolated.

In the test mode, the normal operation of the SCOPEE SN54ABT18245A bus transceivers is inhibited and the test circuitry is enabled to observe and control the input/output (I/O) boundary of the device. When enabled, the test circuitry of SN54ABT18245A performs boundary-scan test operations according to the protocol described in IEEE Standard 1149.1-1990.

Four dedicated test pins of SN54ABT18245A observe and control the operation of the test circuitry: test-data input (TDI), test-data output (TDO), test-mode select (TMS), and test clock (TCK). Additionally, the test circuitry performs other testing functions of SN54ABT18245A such as parallel-signature analysis (PSA) on data inputs and pseudo-random pattern generation (PRPG) from data outputs. All testing and scan operations are synchronized to the TAP interface.

The SN54ABT18245A is characterized for operation over the full military temperature range of 55 to 125. The SN74ABT18245A is characterized for operation from 40 to 85.
