SN74ALVCHR16269A

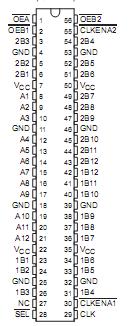

This SN74ALVCHR16269A 12-bit to 24-bit registered bus exchanger is designed for 1.65-V to 3.6-V V_CCoperation.

The SN74ALVCHR16269A is used in applications in which two ports must be multiplexed onto, or demultiplexed from, a single port. It is particularly suitable as an interface between synchronous DRAMs and high-speed microprocessors.

Data is stored in the internal B-port registers on the low-to-high transition of the clock (CLK) input when the appropriate clock-enable (CLKENA) inputs are low. Proper control of these inputs allows two sequential 12-bit words to be presented as a 24-bit word on the B port. For data transfer in the B-to-A direction, a single storage register is provided. The select (SEL) line selects 1B or 2B data for the A outputs. The register on the A output permits the fastest possible data transfer, thus extending the period during which the data is valid on the bus. The control terminals are registered so that all transactions are synchronous with CLK. Data flow is controlled by the active-low output enables (OEA, OEB1, and OEB2). To ensure the high-impedance state of SN74ALVCHR16269A  during power up or power down, a clock pulse should be applied as soon as possible and OE should be tied to V_CCthrough a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. Due to OE being routed through a register, the active state of the outputs cannot be determined prior to the arrival of the first clock pulse.

Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level.All outputs are designed to sink up to 12 mA, and include equivalent 26- resistors to reduce overshoot and undershoot.The SN74ALVCHR16269A is characterized for operation from-40 to 85.
