Features:

 5- Switch Connection Between Two Ports
 TTL-Compatible Input Levels
 Outputs Are Precharged by Bias Voltage to Minimize Signal Distortion During Live Insertion
 Package Options Include Plastic Shrink Small-Outline (DB, DBQ), Small-Outline (DW), and Thin Shrink Small-Outline (PW) Packages




Pinout

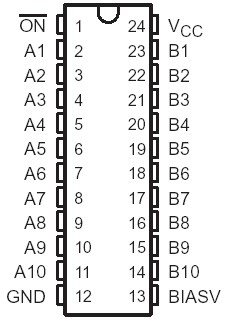

Connection Diagram


Specifications

Supply voltage range, VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Bias voltage range, BIASV  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Input voltage range, VI (see Note 1)  . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . .0.5 V to 7 V
Continuous channel current  . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . .128 mA
Input clamp current, IIK (VI/O < 0)  . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . .50 mA
Package thermal impedance, JA (see Note 2): DB package  . . . . . . . . .  . . . . . . . . . . . .63°C/W
                                                                          DBQ package  . . . . . .  .. . . . . . . . . . . . . 104°C/W
                                                                          DGV package  . . . . . . . . . . . . . . . . . . . . 103°C/W
                                                                          DW package  . . . . . . . . . . . . . . . . . . . . . .81°C/W
                                                                          PW package  . . . . . . . . . . . . . . . . . . . . . 120°C/W
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . .65°C to 150°C


Description

The SN74CBT6800 provides ten bits of high-speed TTL-compatible bus switching. The low on-state resistance of the switch allows bidirectional connections to be made while adding near-zero propagation delay. The device also precharges the B port to a user-selectable bias voltage (BIASV) to minimize live-insertion noise.

The SN74CBT6800 is organized as one 10-bit switch with a single enable (ON) input. When ON is low, the switch is on and port A is connected to port B. When ON is high, the switch between port A and port B is open and the B port is precharged to BIASV through the equivalent of a 10-kW resistor.

The SN74CBT6800 is characterized for operation from 40°C to 85°C.
