Product Details

Description



Features:

Meets true EIA/TIA-232-F Standards from a +3.0V to +5.5V power supply
Interoperable with RS-232 down to +2.7V power source
1µA Low-Power Shutdown with Receivers Active (SP3222EH)
Enhanced ESD Specifications:
+15kV Human Body Model
+15kV IEC1000-4-2 Air Discharge
+8kV IEC1000-4-2 Contact Discharge
460Kbps Minimum Transmission Rate
Ideal for Handheld, Battery Operated Applications




Pinout

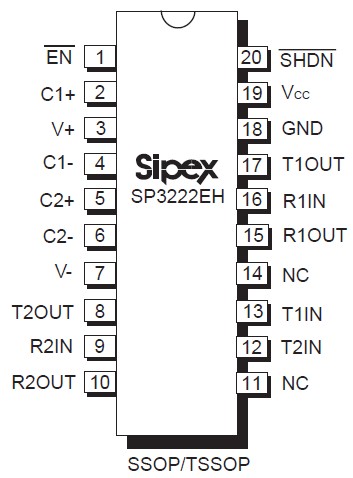

Connection Diagram






Specifications

VCC.............................................................................-0.3V to +6.0V
V+ (NOTE 1)................................................................-0.3V to +7.0V
V- (NOTE 1).................................................................+0.3V to -7.0V
V+ + |V-| (NOTE 1)....................................................................+13V
ICC (DC VCC or GND current)...............................................+100mA
Electrostatic Discharge
HBM .........................................................................................15kV
IEC1000-4-2-AirDischarge........................................................15kV
IEC1000-4-2 Direct Contact........................................................8kV
Input Voltages
TxIN, EN ...................................................................-0.3V to +6.0V
RxIN.......................................................................................±25V
Output Voltages
TxOUT.................................................................................±13.2V
RxOUT............................................................-0.3V to (VCC + 0.3V)
Short-Circuit Duration
TxOUT...........................................................................Continuous
Storage Temperature........................................-65°C to +150°C
Power Dissipation Per Package
20-pin SSOP (derate 9.25mW/oC above +70oC)................750mW
18-pin PDIP (derate 15.2mW/oC above +70oC)...............1220mW
18-pin SOIC (derate 15.7mW/oC above +70oC)..............1260mW
20-pin TSSOP (derate 11.1mW/oC above +70oC)..............890mW
16-pin SSOP (derate 9.69mW/oC above +70oC)................775mW
16-pin PDIP (derate 14.3mW/oC above +70oC)...............1150mW
16-pin Wide SOIC (derate 11.2mW/oC above +70oC).......900mW
16-pin TSSOP (derate 10.5mW/oC above +70oC)..............850mW

Specifications
No. of Tx 2
No. of Rx 2
Data Rate (kbps) 460
ESD (KV) 15
VccMIN.(V) 3
VccMAX.(V) 5.5
Vcc (V) 3.3
Int.Chrg. Pump Yes
No. ofExtCaps 4
NomCap.Value(F) 0.1
Shutdown
TTLTri-state Yes





Description

The SP3222EH and the 3232EH are 2 driver/2 receiver RS-232 transceiver solutions intended for portable or hand-held applications such as notebook or palmtop computers.Their data transmission rate of 460Kbps meeting the demands of high speed RS-232 applications. Both ICS have a high-efficiency, charge-pump power supply that requires only 0.1µF capacitors for 3.3V operation. The charge pump allows the SP3222EH and the 3232EH series to deliver true RS-232 performance from a single power supply ranging from +3.3V to +5.0V. The ESD tolerance of the SP3222E H/3232EH devices exceeds +15kV for both Human Body Model and IEC1000-4-2 Air discharge test methods.

The SP3222EH device has a low-power shutdown mode where the devices' driver outputs and charge pumps are disabled. During shutdown, the supply current is less than 1µA.
