Features: Meets true EIA/TIA-232-F Standardsfrom a +3.0V to +5.5V power supply
Interoperable with EIA/TIA - 232 andadheres to EIA/TIA - 562 down to a +2.7Vpower source
1A Low-Power Shutdown with ReceiversActive (SP3222EU)
Enhanced ESD Specifications:±15kV Human Body Model±15kV IEC1000-4-2 Air Discharge±8kV IEC1000-4-2 Contact Discharge
1000 kbps Minimum Transmission Rate

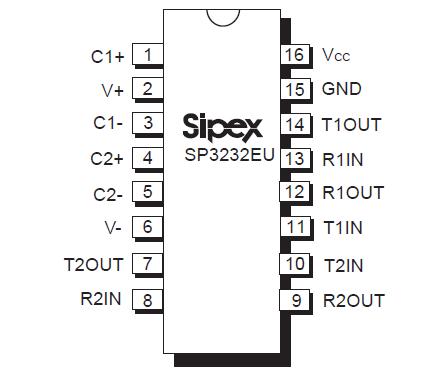

Ideal for Handheld, Battery OperatedApplicationsPinout
Specifications
| No. of Tx |
2 |
| No. of Rx |
2 |
| Data Rate (kbps) |
1000 |
| ESD (KV) |
15 |
| VccMIN.(V) |
3 |
| VccMAX.(V) |
5.5 |
| Vcc (V) |
3.3 |
| Int.Chrg. Pump |
Yes |
| No. ofExtCaps |
4 |
| NomCap.Value(F) |
0.1 |
| Shutdown |
|
| TTLTri-state |
No |
VCC ................................................... -0.3V to +6.0V
V+ (NOTE 1) ...................................... .-0.3V to +7.0V
V- (NOTE 1) ....................................... .+0.3V to -7.0V
V+ + |V-| (NOTE 1) ........................................... +13V
ICC (DC VCC or GND current) .......................±100mA
TxIN, EN ...........................................-0.3V to +6.0V
RxIN .................................................................. ±25V
TxOUT..............................................................±13.2V
RxOUT............. ..........................-0.3V to (VCC + 0.3V)
TxOUT........................................................Continuous
Storage Temperature........................-65°C to +150°C
DescriptionThe SP3222EU and the SP3232EU are 2 driver, 2 receiver RS-232 transceiver solutionsintended for portable or hand-held applications such as notebook or palmtop computers.Their data transmission rate of 1000 kbps meets the demands of high speed RS-232applications. Both ICs have a high-efficiency, charge-pump power supply that requiresonly 0.1F capacitors in 3.3V operation. This charge pump allows the SP3222EU and the3232EU to deliver true RS-232 performance from a single power supply ranging from+3.0V to +5.5V. The ESD tolerance of the SP3222EU/3232EU devices are over ±15kVfor both Human Body Model and IEC1000-4-2 Air discharge test methods.
The SP3232EU device has a low-power shutdown mode where the devices' driveroutputs and charge pumps are disabled. During shutdown, the supply current falls to lessthan 1uA.
SP3232EU Data Sheet
