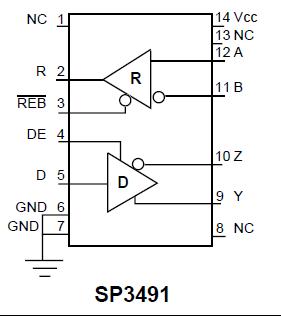

SP3491

These are stress ratings only and functional operation of the device at these ratings or any other above those indicated in the operation sections of the specifications below is not implied. Exposure to absolute maximum rating conditions for extended periods of time may affect reliability.
V_CC ............................................................................................. +6.0V
Input Voltages
Drivers ............................................................... -0.3V to +6.0V
Receivers ......................................................................... ±14V
Output Voltages
Drivers .............................................................................. ±14V
Receivers .......................................................... -0.3V to +6.0V
Storage Temperature ................................................... -65°C to +150°
Power Dissipation per Package
8-pin NSOIC (derate 6.90mW/ above +70) ..................... 600mW
8-pin PDIP (derate 11.8mW/ above +70) ...................... 1000mW
14-pin NSOIC (derate 8.33mW/ above +70) ................... 700mW
14-pin PDIP (derate 14.3mW/ above +70) .................... 1200mW

The SP3490 and the SP3491 are +3.3V low power full duplex transceivers that meet the specifications of the RS-485 and RS-422 serial protocols. These devices are pin-to-pin compatible with the Sipex SP490 and SP491 devices as well as popular industry standards.

The SP3490 and the SP3491feature Sipex's BiCMOS process, allowing low power operation without sacrificing performance. The SP3490 and SP3491 meet the electrical specifications of RS-485 and RS-422 serial protocols up to 10Mbps under load. The SP3491 is identical to the SP3490 with the addition of driver and receiver tri-state enable lines.
