SP5610

Features: Complete 1.3GHz Single chip SystemHigh Sensitivity RF InputsProgrammable via I2C BusOn Chip oscillator with 1k negative resistanceLow power consumption (5V, 20mA)Low RadiationPhase Lock DetectorVaractor Drive Amp Disable5 Controllable Outputs5 Level ADCVariable I2C BUS Address For Multi...

product image

SP5610 Picture
See larger image
SeekIC No. : 004500497 Detail

SP5610: Features: Complete 1.3GHz Single chip SystemHigh Sensitivity RF InputsProgrammable via I2C BusOn Chip oscillator with 1k negative resistanceLow power consumption (5V, 20mA)Low RadiationPhase Lock D...

SP5610 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SP5610
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Complete 1.3GHz Single chip System
 High Sensitivity RF Inputs
 Programmable via I2C Bus
 On Chip oscillator with 1k negative resistance
 Low power consumption (5V, 20mA)
 Low Radiation
 Phase Lock Detector
 Varactor Drive Amp Disable
 5 Controllable Outputs
 5 Level ADC
 Variable I2C BUS Address For Multi Tuner Applications
 ESD Protection *
 Switchable ÷512/1024 Reference Divider
 Pin and Function Compatible with SP5510S


Application

 Satellite TV when combined with SP4902 2.5GHz prescaler
 Cable Tuning Systems
 VCR's


Pinout

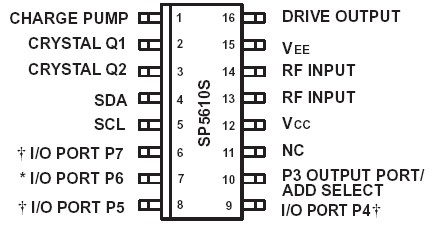

Connection Diagram


Specifications

Parameter
Pin
Value
Units
Conditions
Min
Max
Supply voltage
12
-0.3
7
V
RF input voltage
t
13, 14
2.5
Vp-p
Port voltage
610
69
10
0.3
0.3
0.3
14
6
14

V
V
V
Port in off state
Port in on state
Port in on state
Total port output current
610
VCC+0.3
V
RF input DC offset
13, 14
0.3
VCC+0.3
V
Charge Pump DC offset
1
0.3
6
V
Drive DC offset
16
-0.3
VCC+0.3
V
Crystal oscillator DC offset
2
0.3
VCC+0.3
V
SDA,SCL input voltage
4.5
-0.3
6
V
Storage temperature

55
+150
°C
Junction temperature


+150
°C
MP16 thermal resistance, chiptoambient
MP16 thermal resistance, chiptocase


111
41
°C/W
°C/W
Power consumption


220
mW
All ports off
ESD protection
All
4


kV
MIL STD 883 TM 3015
