SP5655

Features: Complete 2`7GHz Single Chip System High Sensitivity RF Inputs Programmable via I2C BUS Low Power Consumption (5V, 30mA) Low Radiation Phase Lock Detector Varactor Drive Amp Disable 6 Controllable Outputs, 4 Bidirectional 5-Level ADC Variable I2C BUS Address for Multi-tuner Applications ...

product image

SP5655 Picture
See larger image
SeekIC No. : 004500500 Detail

SP5655: Features: Complete 2`7GHz Single Chip System High Sensitivity RF Inputs Programmable via I2C BUS Low Power Consumption (5V, 30mA) Low Radiation Phase Lock Detector Varactor Drive Amp Disable 6 Cont...

SP5655 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SP5655
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Complete 2`7GHz Single Chip System
High Sensitivity RF Inputs
Programmable via I2C BUS
Low Power Consumption (5V, 30mA)
Low Radiation
Phase Lock Detector
Varactor Drive Amp Disable
6 Controllable Outputs, 4 Bidirectional
5-Level ADC
Variable I2C BUS Address for Multi-tuner Applications
ESD Protection: 4kV, Mil-Std-883C, Method 3015 (1)
 Switchable 4512/1024 Reference Divider
Pin and Function Compatible with SP5055S (2)


Application

Satellite TV
High IF Cable Tuning Systems


Pinout

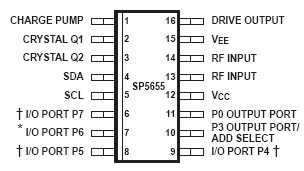

Connection Diagram


Specifications

Parameter
Pin
Value
Units
Conditions
Min
Max
Supply voltage
RF input voltage
Port voltage



Total port output current
Address select voltage
RF input DC offset
Charge pump DC offset
Drive output DC offset
Crystal oscillator DC offset
SDA, SCL input voltage
Storage temperature
Junction temperature
12
13,14
6-11
6-9
10, 11
6-9
10
13-14
1
16
2
4,5
-0·3

-0·3
-0·3
-0·3

-0·3
-0·3
-0·3
-0·3
-0·3
-0·3
-55
7
2·5
14
6
14
50
VCC+0·3
VCC+0·3
VCC+0·3
VCC+0·3
VCC+0·3
5·5
+150
+150
V
V p-p
V
V
V
V
mA
V
V
V
V
V
V
°C
°C



Port in off state
Port in on state
Port in on state
