Application

 SAT, TV, VCR and Cable tuning systems
 Communications systems


Pinout

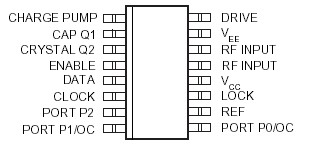

Connection Diagram


Specifications

Parameter
Pin
Value
Units
Conditions
Min
Max
Supply voltage, VCC
RF input voltage
RF input offset
Port output voltage

Total port current
12
13, 14
13, 14
7-9
7-9
7-9
-0.3

-0.3
-0.3
-0.3
7
2.5
VCC+0.3
14
6
50
V
Vp-p
V
V
V
mA



Port in off state
Port in on state


REFoutput DC offset
Lock output DC offset
10
11
-0.3
-0.33
VCC+0.3
VCC+0.3
V
V
Lock output current
Charge pump DC offset
Drive DC offset
Crystal oscillator DC offset
Data, Clock & inputs
11
1
16
2, 3
4,5,6

-0.3
-0.3
-0.3
-0.3
10
VCC+0.3
VCC+0.3
VCC+0.3
VCC+0.3
mA
V
V
V
V

Storage temperature
Junction temperature
MP16 Thermal resistance
Chip to ambient
Chip to case

-55
+150
+150

111
41
°C
°C

°C/W
°C/W

Power consumption
at VCC = 5.5V


407
mV
All ports off, prescaler enabled
ESD protection
All
2

kV
MIL STD 883 TM 3015



Description

Complete 2.7GHz single chip system
Optimised for low phase noise
Selectable divide by two prescaler
Selectable reference division ratio
Charge pump disable
Varactor line disable
'Inlock' flag
Two selectable charge pump currents
Three switching ports
Reference frequency output
ESD protection (Normal ESD handling procedures should be observed)
