Product Details

Description



Features:

·Operation to 1100MHz
·Very Low Power
·Single Supply Operation 2.7V to 5.25V
·Power Down Facility for Battery Economy
·Latched Modulus Control Inputs
·Push Pull Output Drive
·ESD Protection on All Pins†


Application

·Cellular Telephones
·Cordless Telephones
·Mobile Radio

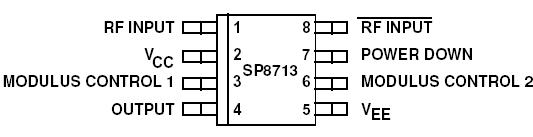

Pinout

Connection Diagram


Specifications

Supply voltage (VEE=0V) (note 1)  . . . . .-0.5V to 7V
Control and RF inputs,
RF output (VEE =0V) (note 1)  . . .-0.5V to VCC+0.5V
RF input current (note 1)  . . . . . . . . . . . . . . . .10mA
Operating temperature  . . . . . . . .-40°C to +85°C
Storage temperature range . . .  -55°C to +150°C
Maximum junction temperature  . . . . . . . ..+150°C


Description

The SP8713 is a switchable divide by 64/65/72 programmable divider which is guaranteed to operate up to 1100MHz. It will operate from a supply of 2.7V to 5.25V and requires typically 4.1mA (including the output current). It also features a power down facility for battery economy.

The RF inputs are internally biased and should be capacitively coupled to the signal source. The output is designed to interface with CMOS synthesisers, such as the NJ88C50.
