SP8714

Features: ·Operation to 2100MHz·Very Low Power·Single Supply Operation 2.7V to 5.25V·Power Down Facility for Battery Economy·Latched Modulus Control Input·Push Pull Output Drive·ESD Protection on All Pins†Application·Cellular Telephones·Cordless TelephonesPinoutSpecificationsSupply voltage (...

product image

SP8714 Picture
See larger image
SeekIC No. : 004500766 Detail

SP8714: Features: ·Operation to 2100MHz·Very Low Power·Single Supply Operation 2.7V to 5.25V·Power Down Facility for Battery Economy·Latched Modulus Control Input·Push Pull Output Drive·ESD Protection on Al...

SP8714 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SP8714
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Operation to 2100MHz
·Very Low Power
·Single Supply Operation 2.7V to 5.25V
·Power Down Facility for Battery Economy
·Latched Modulus Control Input
·Push Pull Output Drive
·ESD Protection on All Pins†


Application

·Cellular Telephones
·Cordless Telephones


Pinout

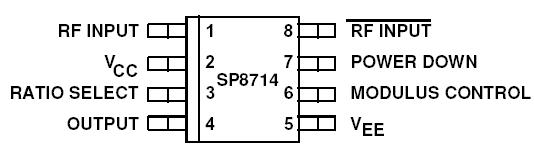

Connection Diagram


Specifications

Supply voltage (VEE=0V) (note 1) . . . . . . . .- 0.5V to 7V
Control and RF inputs,
RF output (VEE =0V) (note 1)  . . . . . .-0.5V to VCC+0.5V
RF input current (note 1)  . . . . . . . . . . . . . . . . . . .10mA
Operating temperature  . . . . . . . . . .  -40°C to +85°C
Storage temperature range  . . . . . . -55°C to +150°C
Maximum junction temperature  . . . . . . . . . . . .+150°C
NOTE 1. Duration <2 minutes.


Description

The SP8714 is a switchable divide by 32/33, 64/65 programmable divider which is guaranteed to operate up to 2100MHz. SP8714 will operate from a supply of 2.7V to 5.25V and requires typically 6.8mA (including the output current). SP8714 also features a power down facility for battery economy.

The RF inputs are internally biased and should be capacitively coupled to the signal source. The output is designed to interface with CMOS synthesisers.
