Description: The SP8715 is a switchable divide by 64/65, 128/129 programmable divider which is guaranteed to operat...
- Table of contents:
SP8715
-
Suppliers
DataSheet
General Description
SP8715 General Description
The SP8715 is a switchable divide by 64/65, 128/129 programmable divider which is guaranteed to operate up to 1100MHz. It will operate from a supply of 2.7V to 5.25V and requires typically 3.6mA (including the output current). It also features a power down facility for battery economy.
The RF inputs are internally biased and should be capacitively coupled to the signal source. The output is designed to interface with CMOS synthesisers.
SP8715 Maximum Ratings
Supply voltage (VEE=0V) (note 1) . . . . . . . .-0.5V to 7V
Control and RF inputs,
RF output (VEE =0V) (note 1) . . . . . . -0.5V to VCC+0.5V
RF input current (note 1) . . . . . . . . . . . . . . . . . . . 10mA
Operating temperature . . . . . . . . . . -40°C to +85°C
Storage temperature range . . . . . . -55°C to +150°C
Maximum junction temperature . . . . . . . . . . . +150°C
Control and RF inputs,
RF output (VEE =0V) (note 1) . . . . . . -0.5V to VCC+0.5V
RF input current (note 1) . . . . . . . . . . . . . . . . . . . 10mA
Operating temperature . . . . . . . . . . -40°C to +85°C
Storage temperature range . . . . . . -55°C to +150°C
Maximum junction temperature . . . . . . . . . . . +150°C
SP8715 Features
·Operation to 1100MHz
·Very Low Power
·Single Supply Operation 2.7V to 5.25V
·Power Down Facility for Battery Economy
·Latched Modulus Control Input
·Push Pull Output Drive
·ESD Protection on All Pins†
SP8715 Typical Application
·Cellular Telephones
·Cordless Telephones
·Mobile Radio
·Cordless Telephones
·Mobile Radio

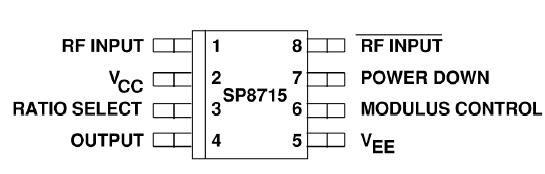

SP8715 Connection Diagram
SP8715
