Product Details

Description



Features:

·  Very Low Power
·  Control Input and Counter Output will Interface Directly
  to TTL or CMOS
·  Interfaces to GPS SP8000 Series Programmable
  2-Modulus Dividers

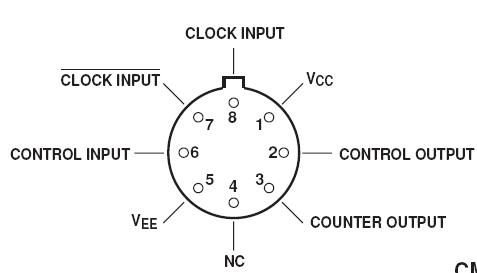

Pinout

Connection Diagram


Specifications

Supply voltage.........................................................8V
Open collector output voltage...............................12V
Storage temperature range.............265°C to 1150°C
Max. junction temperature..............................1175°C
Max. clock input voltage.................................2·5V p-p
Output sink current........................................... 10mA


Description

The SP8790 is a divide-by-four counter designed for use with 2-modulus dividers. It increases the minimum division ratio of the 2-modulus divider while retaining the same difference in division ratio. The device is suitable for use in low power frequency synthesis interfacing to CMOS or TTL
