Product Details

Description



Features:

Very Low Power
Control Input and Output CMOS/TTL Compatible
AC Coupled Input
Operation up to 9.5V using Internal Regulator

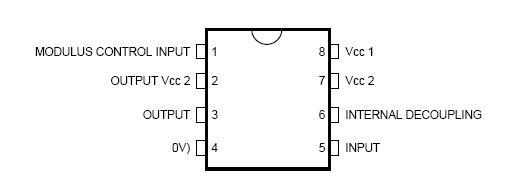

Pinout

Connection Diagram


Specifications

Supply voltage ........................................6.0V pins 7 & 8 tied
Supply voltage ..........................13.5V pin 8, pin 7 decoupled
Storage temperature range ........................-55°C to +125°C
Max. Junction temperature ........................................+175°C
Max. clock input voltage............................................ 2.5V p-p
Vcc2 max. ..........................................................................10V


Description

The SP8792 AND SP8793 are low power programmable ¸80/81 and ¸40/41 counter, temperature range: -40°C to +85°C.They divide by 80(40) when control input is in the high state and by 81(41) when in the low state. An internal voltage regulator allows operation from a wide range of supply voltages.
