SP8804

Features: *Very High Speed Operation 3.3GHz* Silicon Technology for low Phase Noise (Typically better than -140dBc/Hz at 10kHz)*Specified Over the Full Military Temperature Range* Low Power Dissipation 370mW (typ)* 5V Single Supply Operation* High Input Sensitivity*Very Wide Operating Frequency Ra...

product image

SP8804 Picture
See larger image
SeekIC No. : 004500779 Detail

SP8804: Features: *Very High Speed Operation 3.3GHz* Silicon Technology for low Phase Noise (Typically better than -140dBc/Hz at 10kHz)*Specified Over the Full Military Temperature Range* Low Power Dissipat...

SP8804 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SP8804
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Very High Speed Operation 3.3GHz
*  Silicon Technology for low Phase Noise
    (Typically better than -140dBc/Hz at 10kHz)
* Specified Over the Full Military Temperature Range
*  Low Power Dissipation 370mW (typ)
*  5V Single Supply Operation
*  High Input Sensitivity
* Very Wide Operating Frequency Range
*  Available as DESC SMD 5962-9056701MPA

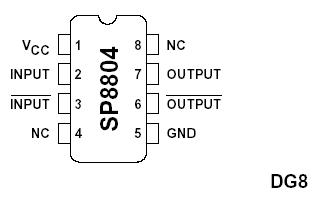

Pinout

Connection Diagram


Specifications

Supply voltage VCC ................................................6.5V
Clock Input voltage ..........................................2.5V p-p
Storage temperature range............. -65°C to +150°C
Junction temperature...................................... +175°C


Description

*The SP8804 is one of a range of very high speed low power prescalers for professional and military applications.
   The device features a complementary output stage with on chip current source for the emitter follower outputs.
