Purchase SP8904, In-stock SP8904 From SeekIC.
Part Number: SP8904
Description: The SP8904 is one of a range of very high speed low power prescalers for professional applications. Th...
- Table of contents:
SP8904
-
Suppliers
DataSheet
General Description
SP8904 General Description
The SP8904 is one of a range of very high speed low power prescalers for professional applications. The dividing elements are static D type flip flops and therefore allow operation down to DC if the drive signal is a pulse waveform with fast risetime. The output stage has a differential current output and provides a direct drive into a 50 ohm load.
SP8904 Maximum Ratings
| Supply voltage, VCC | 6.5V |
| Storage temperature | -65°C to +150°C |
| Maximum junction temperature | +150°C |
| Prescaler input voltage | 2.5Vp-p |
| Operating temperature | KG-40°C to +85°C TCASE |
SP8904 Features
· Very High Operating Speed
· Operation down to DC with Square Wave Input
· Silicon Technology for Low Phase Noise (Typically better than 2140dBc/Hz at 1KHz)
· 5V Single Supply Operation
· Low Power Dissipation: 350mW (Typ.)
· Surface Mount Plastic Package
· Operation down to DC with Square Wave Input
· Silicon Technology for Low Phase Noise (Typically better than 2140dBc/Hz at 1KHz)
· 5V Single Supply Operation
· Low Power Dissipation: 350mW (Typ.)
· Surface Mount Plastic Package

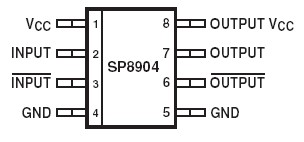

SP8904 Connection Diagram
SP8904 (MP)
PDF/DataSheet Download
- Datasheet: SP8904 (MP)
- File Size: 420709 KB
- Manufacturer: Zarlink
- Click here to Download
