Product Details

Description



Features:

 Very High Operating Speed
 Operation down to DC with Square Wave Input
 Silicon Technology for Low Phase Noise (Typically better than 2140dBc/Hz at 1KHz)
 5V Single Supply Operation
 Low Power Dissipation: 340mW (Typ.)
 Surface Mount Plastic Package

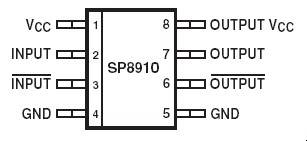

Pinout

Connection Diagram


Specifications

Supply voltage, VCC.....................................................6.5V
Storage temperature..............................-65°C to +150°C
Maximum junction temperature..............................+150°C
Prescaler input voltage............................................2.5Vp-p
Operating temperature...............KG-40°C to +85°C TCASE


Description

The SP8910 is one of a range of very high speed low power prescalers for professional applications. The dividing elements are static D type flip flops and therefore allow operation down to DC if the drive signal is a pulse waveform with fast risetime. The output stage has internal100 ohm pull up resistors, giving a 0·5V p-p output. If required, an external 100 ohm can be connected in parallel to give a 50 ohm output.
