Product Details

Description



Features:

Liquid Crystal Display driver with serial/parallel
conversion function.
Serial transfer facilitates board design.
Capable of interfacing to liquid crystal display,controllers: HD43160AH, HD61830, HD44780,HD44790, SPLC780
40 internal LCD drivers.
Internal serial/parallel conversion circuits:
     - 20-bit shift register*2
     - 20-bit latch*2
Power supply:
     - Internal logic: 2.7V 5.5V
     - Liquid crystal display driver circuit: 3.0V 11.0V
CMOS process.


Pinout

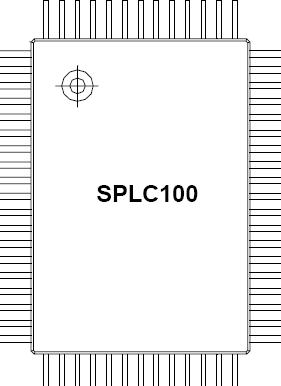

Connection Diagram


Specifications

Characteristics Symbol Ratings
Operating Voltage VDD *1 -0.3V to + 7.0V
LCD Driver Supply Voltage VEE *2 VDD - 13.5V to VDD+ 0.3V
Input Voltage 1 VIN1 -0.3V to VDD + 0.3V
Input Voltage 2 ( V1 - V6 ) VIN2 VDD + 0.3V to VEE -0.3V
Operating Temperature TOPR -20 to + 75
Storage Temperature TSTG -55 to + 125

Note: 1.It will cause damage to IC if the supply voltage is greater than above.
2.Connect a protection resistor of 220±5% to VEE




Description

The SPLC100A1 is a Liquid Crystal Display driver that contains two sets of 20-bit bi-directional shift registers, 20 data latch flip-flops and 20 Liquid Crystal Display drivers. It also features 40-channel outputs that can be applied as common or segment driver. The SPLC100A1 receives serial display data from a display control LSI, converts it into parallel data and supplies liquid crystal display waveforms to the liquid crystal.
