Character generator ROM: 10880 bits
Character font 5 x 8 dots: 192 characters
Character font 5 x 10 dots: 64 characters
Character generator RAM: 512 bits
Character font 5 x 8 dots: 8 characters
Character font 5 x 10 dots: 4 characters
4-bit or 8-bit MPU interfaces
Direct driver for LCD: 16 COMs x 80 SEGs
Duty factor (selected by program):
1/8 duty: 1 line of 5 x 8 dots
1/11 duty: 1 line of 5 x 10 dots
1/16 duty: 2 lines of 5 x 8 dots / line
Built-in power on automatic reset circuit
Built-in oscillator circuit (with external resistor)
Support external clock operation
Low Power Consumption
Package form: bare chip available
Characteristics | Symbol | Ratings |
Operating Voltage | VDD | -0.3V to +7.0V |
Driver Supply Voltage | VLCD | VDD - 12V to VDD + 0.3V |
Input Voltage Range | VIN | -0.3V to VDD + 0.3V |
Operating Temperature | TA | -30 to +80 |
Storage Temperature | TSTO | -55 to +125 |

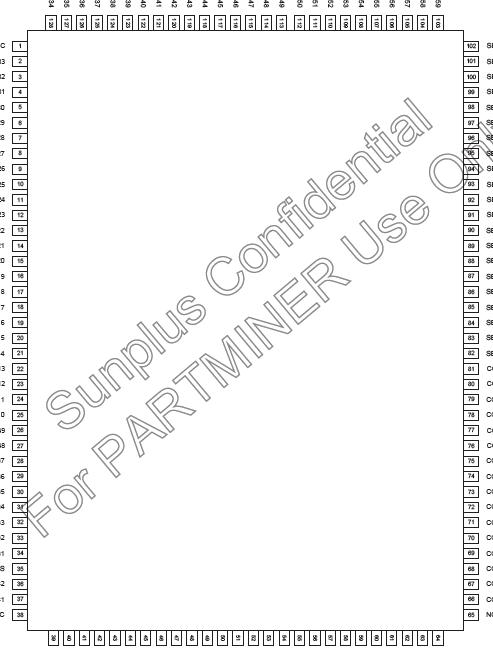

The SPLC783A, a dot-matrix LCD controller and driver from SUNPLUS, is a unique design for displaying alpha-numeric, Japanese-Kana characters and symbols. The SPLC783A provides two types of interfaces to MPU: 4-bit and 8-bit interfaces. The transferring speed of 8-bit is twice faster than 4-bit. A single
SPLC783A is able to display up to two 16-character lines. By cascading with SPLC100 or SPLC063, the display capability can be extended. The CMOS technology ensures the power saves in the most efficient way and the performance keeps in the highest rank.
