SPT7871

• 10-Bit, 100 MSPS Analog-to-Digital Converter
• Monolithic Bipolar
• Single-Ended Bipolar Analog Input
• -1.0 V to +1.0 V Analog Input Range
• Internal Sample-and-Hold
• Internal Voltage Reference
• Programmable Data Output Formats
• Single Ended TTL Outputs
• Differential ECL Clock Input

• Professional Video
• HDTV
• Communications
• Imaging
• Digital Oscilloscopes

The SPT7871 is a 10-bit, 100  MSPS analog-to-digital con-verter, with a two stage subranging flash/folder architecture.The bipolar, single-ended analog input provides an easy interface for most applications. Programmable data output formats provide additional ease of implementation and flex-ibility. The device supports high speed TTL outputs.

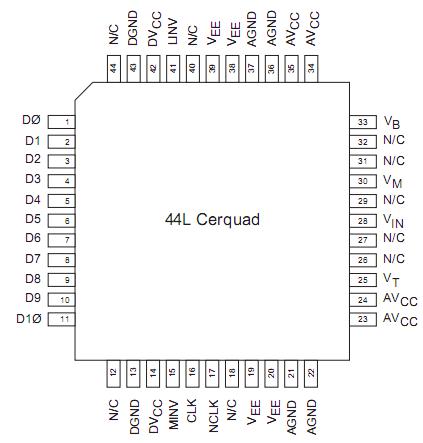

The resolution and performance of this SPT7871 makes it well suited for professional video and HDTV applications.The on-chip track-and-hold provides for excellent AC performance enabling this device to be a converter of choice for RF communications and digital sampling oscilloscopes. The SPT7871 is available in a 44L cerquad package in the industrial temperature range and in die form.
