SPT7937

Features: • Monolithic 28 MSPS Analog-to-Digital Converter• 170 mW Power Dissipation• On-Chip Track-and-Hold• Single +5 V Power Supply• TTL/CMOS Outputs• 5 pF Input Capacitance• Selectable +3 V or +5 V Logic I/OApplication• All High-Speed Application...

product image

SPT7937 Picture
See larger image
SeekIC No. : 004501437 Detail

SPT7937: Features: • Monolithic 28 MSPS Analog-to-Digital Converter• 170 mW Power Dissipation• On-Chip Track-and-Hold• Single +5 V Power Supply• TTL/CMOS Outputs• 5 pF Inp...

SPT7937 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SPT7937
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Monolithic 28 MSPS Analog-to-Digital Converter
• 170 mW Power Dissipation
• On-Chip Track-and-Hold
• Single +5 V Power Supply
• TTL/CMOS Outputs
• 5 pF Input Capacitance
• Selectable +3 V or +5 V Logic I/O




Application

• All High-Speed Applications Where Low Power Dissipation Is Required
• Video Imaging
• Medical Imaging
• IR Imaging
• Digital Communications




Pinout

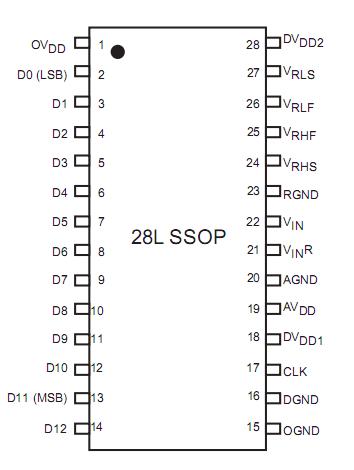

Connection Diagram


Specifications

Supply Voltages
AVDD .........................................................................+6 V
DVDD .........................................................................+6 V
OVDD .........................................................................+6 V
Input Voltages
Analog Input .................................... 0.7 V to VDD +0.7 V
CLK Input ................................................................... VDD
AVDD DVDD...................................................... ±100 mV
AGND DGND .................................................. ±100 mV
Output
Digital Outputs ....................................................... 10 mA
Temperature
Operating Temperature ............................. 40 to +85 °C
Junction Temperature ......................................... +175 °C
Lead Temperature, (soldering 10 seconds) ........ +300 °C
Storage Temperature ............................... 65 to +150 °C


Description

The SPT7937 is a 12-bit monolithic, low-cost, low-power analog-to-digital converter capable of minimum sample rates of 28 MSPS. The SPT7937 has incorporated propri-etary parallel SAR circuit design and CMOS processing technologies to achieve its advanced performance.The on-chip track-and-hold function assures very good dynamic performance without the need for external components.

Power dissipation is extremely low at only 170 mW typical at 28 MSPS with a power supply of +5.0 V. The digital outputs are +3 V or +5 V, and are user selectable.  Inputs and out-puts are TTL/CMOS compatible to interface with TTL/CMOS logic systems. Output data format is straight binary.

The SPT7937 is available in a 28-lead SSOP package over the industrial temperature range.
