SPT9689

Features: • 650 ps propagation delay• 100 ps propagation delay variation• 70 dB CMRR• Low feedthrough and crosstalk• Differential latch control• ECL compatibleApplication• Automated test equipment• High-speed instrumentation• Window comparators...

product image

SPT9689 Picture
See larger image
SeekIC No. : 004501445 Detail

SPT9689: Features: • 650 ps propagation delay• 100 ps propagation delay variation• 70 dB CMRR• Low feedthrough and crosstalk• Differential latch control• ECL compatibleApp...

SPT9689 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SPT9689
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 650 ps propagation delay
• 100 ps propagation delay variation
• 70 dB CMRR
• Low feedthrough and crosstalk
• Differential latch control
• ECL compatible




Application

• Automated test equipment
• High-speed instrumentation
• Window comparators
• High-speed timing
• Line receivers
• High-speed triggers
• Threshold detection
• Peak detection




Pinout

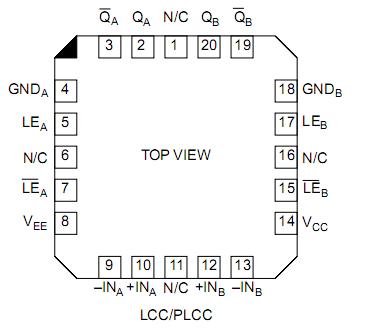

Connection Diagram


Specifications

Supply Voltages
Positive Supply Voltage (VCC to GND) .....0.5 to +6.0 V
Negative Supply Voltage (VEE to GND) ....6.0 to +0.5 V
Ground Voltage Differential ....................0.5 to +0.5 V
Input Voltages
Input Common Mode Voltage ..................4.0 to +5.0 V
Differential Input Voltage ........................ 3.0 to +3.0 V
Input Voltage, Latch Controls ................. VEE to 0.5 V
Output
Output Current .......................................30 mA
Temperature
Operating Temperature, ambient ............40 to +85 °C
junction ..................... +150 °C
Lead Temperature, (soldering 60 seconds) .....+300 °C
Storage Temperature...............................65 to +150 °C


Description

The SPT9689 is a Subnanosecond monolithic dual com-parator. The propagation delay variation is less than100 ps from 5 to 50 mV input overdrive voltage. The inputslew rate is 10 V/ns. The device utilizes a high precisiondifferential input stage with a common-mode range of2.5 V to +4.0 V.ECL-compatible complementary digital outputs are ca-pable of driving 50 Ω terminated transmission lines andproviding 30 mA output drive. The SPT9689 is pin compat-ible with the SPT9687. It is available in 20-lead PLCC and20-contact LCC packages over the industrial temperaturerange. The SPT9689 is also available in die form.
