SPT9693

Features: • Common mode range 3.0 to +8.0 V• Low input bias current <100 pA• Propagation delay 1.5 ns (max)• Low offset ±25 mV• Low feedthrough and crosstalk• Differential latch controlApplication• Automated test equipment• High-speed instrumentat...

product image

SPT9693 Picture
See larger image
SeekIC No. : 004501447 Detail

SPT9693: Features: • Common mode range 3.0 to +8.0 V• Low input bias current <100 pA• Propagation delay 1.5 ns (max)• Low offset ±25 mV• Low feedthrough and crosstalk• ...

SPT9693 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SPT9693
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Common mode range 3.0 to +8.0 V
• Low input bias current <100 pA
• Propagation delay 1.5 ns (max)
• Low offset ±25 mV
• Low feedthrough and crosstalk
• Differential latch control




Application

• Automated test equipment
• High-speed instrumentation
• Window comparators
• High-speed timing
• Line receivers
• High-speed triggers
• Threshold detection
• Peak detection




Pinout

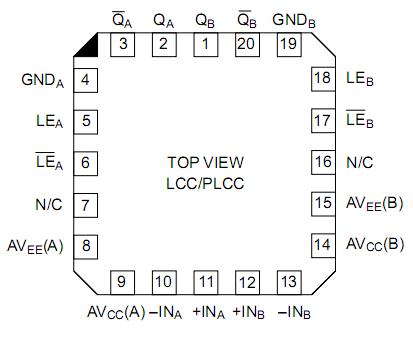

Connection Diagram


Specifications

Supply Voltages (Measured to GND)
Positive Supply Voltage (AVCC) ............ 0.5 to +11.0 V
Negative Supply Voltage (AVEE) ........... 11.0 to +0.5 V
Input Voltages
Input Common Mode Voltage ................6 to +AVCC+1
Differential Input Voltage .................... 12.0 to +12.0 V
Input Voltage, Latch Controls ...................... 6 to 0.5 V
VIN to AVCC Differential Voltage ............... 16 to +1.0 V
VIN to AVEE Differential Voltage ...............+4 to +21.0 V
Output
Output Current ................................................... 30 mA
Temperature
Operating Temperature, ambient ................ 0 to +70 °C
junction......................+150 °C
Lead Temperature, (soldering 60 seconds) ..... +300 °C
Storage Temperature............................ 65 to +150 °C



Description

The SPT9693 is a high-speed, wide common mode volt-age, JFET input, dual comparator. It is designed for appli-cations that measure critical timing parameters in which wide common mode input voltages of 3.0 to +8.0 V are required. Propagation delays are constant for overdrives greater than 50 mV.

JFET inputs reduce the input bias currents of the SPT9693 to the nanoamp level, eliminating the need for input drivers and buffers in most applications. The device has differential analog inputs and complementary logic outputs com-patible with ECL systems. Each comparator has a complementary latch enable control that can be driven by standard ECL logic.

The SPT9693 is available in 20-contact LCC and 20-lead PLCC packages over the commercial temperature range.It is also available in die form.
