ST92195B

Features:

Register File based 8/16 bit Core Architecture with RUN, WFI, SLOW and HALT modes
0°C to +70°C operating temperature range
Up to 24 MHz. operation @5V±10%
Min. instruction cycle time: 165ns at 24 MHz.
32, 48, 56 or 64 Kbytes ROM
256 bytesRAM of Register file (accumulators or index registers)
256 bytes of on-chip static RAM
2, 6 or 8 Kbytes of TDSRAM (Teletext and Display Storage RAM)
28 fully programmable I/O pins
Serial Peripheral Interface
Flexible Clock controller for OSD, Data Slicer and Core clocks running from a single low frequency external crystal.
Enhanced display controller with 26 rows of 40/80 characters
Serial and Parallel attributes
10x10 dot matrix, 512 ROM characters, definable by user
4/3 and 16/9 supported in 50/60Hz and 100/ 120 Hz mode
Rounding, fringe, double width, double height,scrolling, cursor, full background color, halfintensity color, translucency and half-tone modes
Teletext unit, including Data Slicer, Acquisition Unit and up to 8 Kbytes RAM for data storage
VPS and Wide Screen Signalling slicer (on some devices)
Integrated Sync Extractor and Sync Controller
14-bit Voltage Synthesis for tuning reference voltage
Up to 6 external interrupts plus one Non-Maskable Interrupt
8 x 8-bit programmable PWM outputs with 5V open-drain or push-pull capability
16-bit watchdog timer with 8-bit prescaler
One 16-bit standard timer with 8-bit prescaler
4-channel A/D converter; 5-bit guaranteed
Rich instruction set and 14 addressing modes
Versatile development tools, including Assembler, Linker, C-compiler, Archiver,Source Level Debugger and hardware
emulators with Real-Time Operating System available from third parties
Pin-compatible EPROM and OTP devices available

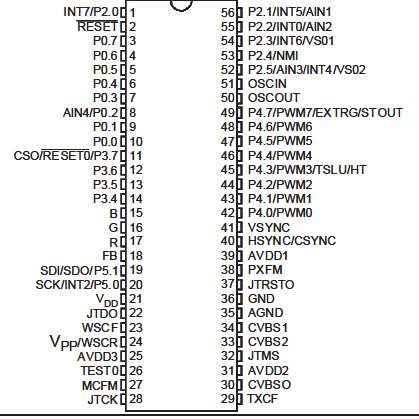

Pinout




Specifications

Symbol	Parameter	Value	Unit
VDD	Supply Voltage	VSS - 0.3 to VSS + 7.0	V
VSSA	Analog Ground	VSS - 0.3 to VSS + 0.3	V
VDDA	Analog Supply Voltage	VDD -0.3 to VDD +0.3	V
VI	Input Voltage	VSS - 0.3 to VDD +0.3	V
VAI	Analog Input Voltage (A/D Converter)	VSS - 0.3 to VDD +0.3 VSSA - 0.3 to VDDA +0.3	V
VO	Output Voltage	VSS - 0.3 to VDD + 0.3	V
TSTG	Storage Temperature	- 55 to + 150	°C
IINJ	Pin Injected Current Maximum Accumulated Pin Injected Current In Device	- 5 to + 5 - 50 to +5 0	mA mA

Description

The ST92195B microcontroller is developed and manufactured by STMicroelectronics using a proprietary n-well HCMOS process. Its performance derives from the use of a flexible 256-register programming model for ultra-fast context switching and real-time event response. The intelligent onchip peripherals offload the ST9 core from I/O and data management processing tasks allowing critical application tasks to get the maximum use of core resources. The ST92195B MCU supports low power consumption and low voltage operation for power-efficient and low-cost embedded systems.
