Features: `Register File based 8/16 bit Core Architecture with RUN, WFI, SLOW and HALT modes
` 0°C to +70°C operating temperature range
`Up to 24 MHz. operation @ 5V±10%
`Min. instruction cycle time: 165ns at 24 MHz.
`48, 56, 64, 84 or 96 Kbytes ROM
`256 bytes RAM of Register file (accumulators or index registers)
`256 to 512 bytes of on-chip static RAM
`2 or 8 Kbytes of TDSRAM (Teletext and Display Storage RAM)
`28 fully programmable I/O pins
`Serial Peripheral Interface
`Flexible Clock controller for OSD, Data Slicer and Core clocks running from a single low frequency external crystal.
`Enhanced display controller with 26 rows of 40/80 characters
2 sets of 512 characters
Serial and Parallel attributes
10x10 dot matrix, definable by user
4/3 and 16/9 supported in 50/60Hz and 100/120 Hz mode
Rounding, fringe, double width, double height,scrolling, cursor, full background color, halfintensity color, ranslucency and half-tone modes
`Teletext unit, including Data Slicer, Acquisition Unit and up to 8 Kbytes RAM for data storage
`VPS and Wide Screen Signalling slicer
`Integrated Sync Extractor and Sync Controller
`14-bit Voltage Synthesis for tuning reference voltage
`Up to 6 external interrupts plus one Non-Maskable Interrupt
`8 x 8-bit programmable PWM outputs with 5V open-drain or push-pull capability
`16-bit watchdog timer with 8-bit prescaler
`1 or 2 16-bit standard timer(s) with 8-bit prescaler
` I²C Master/Slave (on some devices)
`4-channel A/D converter; 5-bit guaranteed
`Rich instruction set and 14 addressing modes
`Versatile development tools, including Assembler, Linker, C-compiler, Archiver, Source Level Debugger and hardware
emulators with Real-Time Operating System available from third parties
`Pin-compatible EPROM and OTP devices available

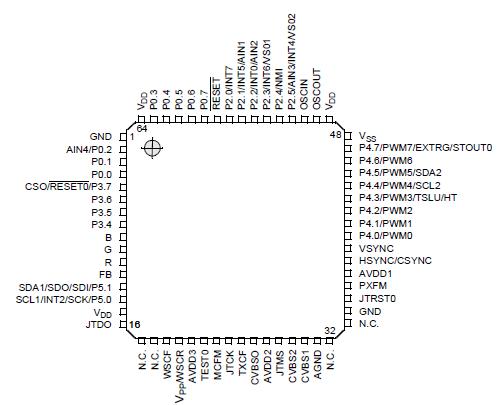

Pinout
Specifications
| Symbol |
Parameter |
Value |
Unit |
| VDD |
Supply Voltage |
VSS - 0.3 to VSS + 7.0 |
V |
| VSSA |
Analog Ground |
VSS - 0.3 to VSS + 0.3 |
V |
| VDDA |
Analog Supply Voltage |
VDD -0.3 to VDD +0.3 |
V |
| VI |
Input Voltage |
VSS - 0.3 to VDD +0.3 |
V |
| VAI |
Analog Input Voltage (A/D Converter) |
VSS - 0.3 to VDD +0.3
VSSA - 0.3 to VDDA +0.3 |
V |
| VO |
Output Voltage |
VSS - 0.3 to VDD + 0.3 |
V |
| TSTG |
Storage Temperature |
- 55 to + 150 |
°C |
| IINJ |
Pin Injected Current
Maximum Accumulated Pin
Injected Current In Device |
- 5 to + 5
- 50 to +5 0 |
mA |
Note: Stress above those listed as "Absolute maximum ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these conditions is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.
DescriptionThe ST92E195 microcontrollers are developed and manufactured by STMicroelectronics using a proprietary n-well HCMOS process. Their performance derives from the use of a flexible 256-register programming model for ultrafast context switching and real-time event response. The intelligent on-chip peripherals offload the ST9 core from I/O and data management processing tasks allowing critical application tasks to get the maximum use of core resources. The ST92E195 MCU support low power consumption and low voltage operation for power-efficient and low-cost embedded systems.
ST92E195 Data Sheet
