Product Details

Description



Pinout

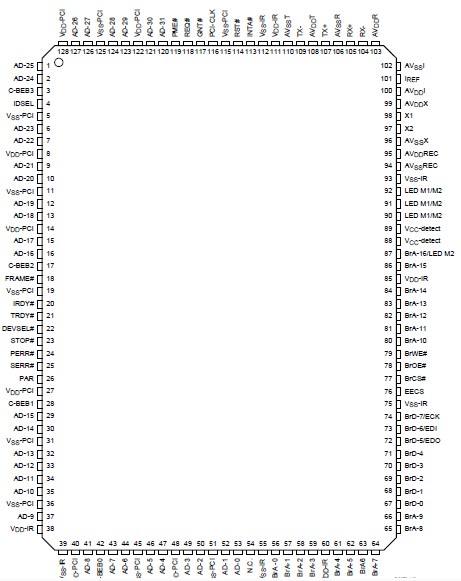

Connection Diagram


Specifications

Parameter Value
Supply Voltage(Vcc) -0.5 V to 7.0 V
Input Voltage -0.5 V to VCC + 0.5 V
Output Voltage -0.5 V to VCC + 0.5 V
Storage Temperature -65 °C to 150 °C(-85°F to 302°F)
Ambient Temperature 0°C to 70°C(32°F to 158°F)
ESD Protection 2000V



Description

The STE10/100 is a high performance PCI Fast Ethernet controller with integrated physical layer interface for 10BASE-T and 100BASE-TX application.

STE10/100 was designed with advanced CMOS technology to provide glueless 32-bit bus master interface for PCI bus, boot ROM interface, CSMA/CD protocol for Fast Ethernet, as well as the physical media interface for 100BASE-TX of IEEE802.3u and 10BASE-T of IEEE802.3. The auto-negotiation function is also supported for speed and duplex detection.

The STE10/100 provides both half-duplex and fullduplex operation, as well as support for full-duplex flow control. It provides long FIFO buffers for transmission and receiving, and early interrupt mechanism to enhance performance. The STE10/100 also supports ACPI and PCI compliant power management function.
