STV223XH

Features: I²C Bus Control PIF Circuit with PLL Demodulation (Positive and Negative Video) SIF Circuit with QSS Structure, FM Demodulation and AM Demodulation for France Intercarrier Capability Built-in Sound Bandpass Sound Subcarrier Output for Stereo Chassis (FM, NICAM) Audio FM wide mode A...

product image

STV223XH Picture
See larger image
SeekIC No. : 004508990 Detail

STV223XH: Features: I²C Bus Control PIF Circuit with PLL Demodulation (Positive and Negative Video) SIF Circuit with QSS Structure, FM Demodulation and AM Demodulation for France Intercarrier Capability...

STV223XH Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
STV223XH
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

I²C Bus Control
PIF Circuit with PLL Demodulation (Positive and Negative Video)
SIF Circuit with QSS Structure, FM Demodulation and AM Demodulation for France
Intercarrier Capability
Built-in Sound Bandpass
Sound Subcarrier Output for Stereo Chassis (FM, NICAM)
Audio FM wide mode
Audio Switch and Volume Control (Mono Chassis)
AVL (Automatic Volume Levelling)
Integrated Chroma Filters and Luma Delay Line
Integrated Chroma Delay Line
Video Switch (3 CVBS In, 2 CVBS Out)
SVHS Switch (Y Combined with CVBS3 Input)
OSD RGB Inputs
External RGB/YCrCb Inputs or YUV Interface
PAL / SECAM / NTSC Chroma Demodulators
Auto Flesh Control Capability in NTSC mode
South America Capability (PAL-M / PAL-N / NTSC)
Chroma Subcarrier Output
Black Stretch Circuit
Peaking Circuit
Automatic Cut-off Current Loop
Manual Cut-off possible for low-cost applications
Two Horizontal Deflection PLLs
Vertical Countdown
Half Contrast
APR (Automatic RGB Peak Regulation) or RGB Peak Limitation Function
White Insertion
Copy Protection mode
Wide Line Blanking mode
SAW Filter Switch Control (TQFP64 package only)
Very Few External Components


Pinout

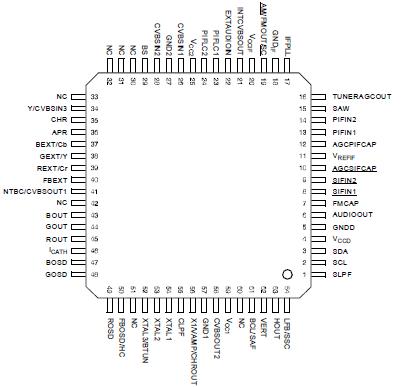

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC_8V
 8 V Supply Voltage
10
V
VCC_5V
 5 V Supply Voltage
7
V
VESD
 Capacitor 100 pF discharged via 1.5 serial resistance (Human Body Model)
±2
kV
TOPER
 Operating Temperature
0, +70
°C
TSTG
 Storage Temperature
-55, +150
°C



Description

The STV224XH/228XH/223XH STV223XH are fully bus-controlled ICs for TV that include PIF, SIF, Luma, Chroma and Deflection processing functions. Used with a vertical frame booster (TDA8174A for a 90° chassis, STV9306 for a 110° chassis), they allow multistandard (BGDKIMNLL', PAL/SECAM/NTSC) sets to be designed with very few external components and no manual adjustments.
