Features: General· ADVANCED I2C BUS CONTROLLED DEFLECTION PROCESSOR DEDICATED FOR HIGH-END CRT MONITORS· SINGLE SUPPLY VOLTAGE 12V· VERY LOW JITTER· DC/DC CONVERTER CONTROLLER· ADVANCED EW DRIVE· ADVANCED ASYMMETRY CORRECTIONS· AUTOMATIC MULTISTANDARD SYNCHRONIZATION· VERTICAL DYNAMIC CORRECTION W...
STV6888: Features: General· ADVANCED I2C BUS CONTROLLED DEFLECTION PROCESSOR DEDICATED FOR HIGH-END CRT MONITORS· SINGLE SUPPLY VOLTAGE 12V· VERY LOW JITTER· DC/DC CONVERTER CONTROLLER· ADVANCED EW DRIVE· AD...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Features: *TYPICAL RDS(on) = 0.013 W* EXCEPTIONAL dv/dt CAPABILITY* 100% AVALANCHE TESTED* LOW GAT...
Symbol |
Parameter |
Value |
Unit | |
Min |
Max | |||
VCC |
Supply voltage (pin VCC) |
-0.4 |
13.5 |
V |
V(pin) |
Pins HEHTIn, VEHTIn, XRay, HOut, BOut Pins H/HVSyn, VSyn, SCL, SDA Pins HLckVBk, CO, RO, HPLL1F, HPosF,HMoiré, BRegIn, BISense, VAGCCap, VCap, VDyCor, HOscF, VOscF Pin HPLL2C Pin HFly |
-0.4 -0.4 -0.4 -0.4 -0.4 |
VCC 5.5 VRefo VRefo/2 VRefo |
V V V V V |
VESD |
ESD susceptibility (human body model: discharge of 100pF through 1.5k) |
-2000 |
2000 |
V |
Tstg |
Storage temperature |
-40 |
150 |
|
Tj |
Junction temperature |
150 |

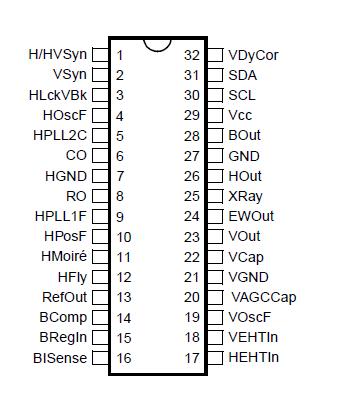

The STV6888 is a monolithic integrated circuit assembled in a 32-pin shrink dual-in-line plastic package. This IC STV6888 controls all the functions related to horizontal and vertical deflection in multimode or multi-frequency computer display monitors.
The internal sync processor, combined with the powerful geometry correction block, makes the STV6888 suitable for very high performance monitors,using few external components.
Combined with other ST components dedicated for CRT monitors (microcontroller, video preamplifier,video amplifier, OSD controller) the STV6888 allows fully I2C bus-controlled computer display monitors to be built with a reduced number of external components
