STV7697A

Features: 64 OUTPUTS PLASMA DISPLAY DRIVER170V ABSOLUTE MAXIMUM SUPPLY5V SUPPLYFOR LOGIC100/400 mA SOURCE/SINK OUTPUT700 mA SOURCE/SINK OUTPUTDIODE64-BIT SHIFT REGISTER (20 MHz)BLANKCONTROLCOMPLEMENTARY OUTPUT CONTROLBCD TECHNOLOGY100 PINS PQFP PACKAGE OR DICE.PinoutSpecifications Symbol P...

product image

STV7697A Picture
See larger image
SeekIC No. : 004509058 Detail

STV7697A: Features: 64 OUTPUTS PLASMA DISPLAY DRIVER170V ABSOLUTE MAXIMUM SUPPLY5V SUPPLYFOR LOGIC100/400 mA SOURCE/SINK OUTPUT700 mA SOURCE/SINK OUTPUTDIODE64-BIT SHIFT REGISTER (20 MHz)BLANKCONTROLCOMPLEMEN...

STV7697A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
STV7697A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

64 OUTPUTS PLASMA DISPLAY DRIVER
170V ABSOLUTE MAXIMUM SUPPLY
5V SUPPLYFOR LOGIC
100/400 mA SOURCE/SINK OUTPUT
700 mA SOURCE/SINK OUTPUTDIODE
64-BIT SHIFT REGISTER (20 MHz)
BLANKCONTROL
COMPLEMENTARY OUTPUT CONTROL
BCD TECHNOLOGY
100 PINS PQFP PACKAGE OR DICE.

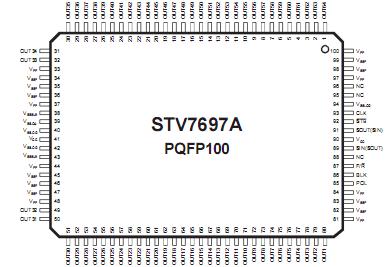

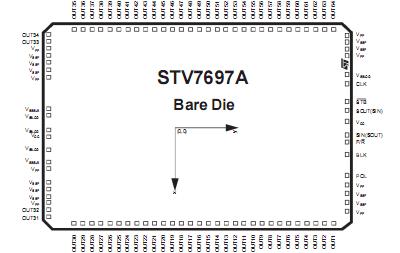

Pinout

Connection Diagram Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Logic Supply Range -0.3,+7 V
VPP Driver Supply Range -0.3,+170 V
VIN Logic Input Voltage Range -0.3,VCC+0.3 V
VOUT Logic Output Voltage Range -0.3,VCC+0.3 V
VPOUT Driver Output Voltage Range -0.3,VPP V
IPOUT Driver Output Current(3)(5) +100/-400 mA
IDOUT DiodeOutputCurrent(4)(5) ±700 mA
Tjmax Operating Temperature -20,+85 °C
Toper Junction Temperature(2) +125 °C
Tstg Storage Temperature -50,+150 °C



Description

The STV7697A is a scan driver for Plasma Display Panel (PDP) implemented in ST's proprietary BCD technology.Using a 64-bit cascadable 20 MHz shift register,it drives 64 high current & high voltage outputs.By serially connecting several STV7697A ,any vertical pixel definition can be performed.The STV7697A is supplied with a separated 160V power output supply and a 5V logic supply. All command inputs are CMOS compatible.

The STV7697A package is a 100 pins PQFP.
