SY100ELT28

Features: Guaranteed AC parameters over temperature:• fMAX > 160MHz (TTL)• < 5.5ns PECL-to-TTL propagation delay• < 1.5ns tr / tf; PECL output• < 1.3ns TTL-to-PECL propagation delay Wide temperature range: 40°C to +85°C 5V power supply QTTL output will default l...

product image

SY100ELT28 Picture
See larger image
SeekIC No. : 004509947 Detail

SY100ELT28: Features: Guaranteed AC parameters over temperature:• fMAX > 160MHz (TTL)• < 5.5ns PECL-to-TTL propagation delay• < 1.5ns tr / tf; PECL output• < 1.3ns TTL-to-PEC...

SY100ELT28 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SY100ELT28
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Guaranteed AC parameters over temperature:
• fMAX > 160MHz (TTL)
• < 5.5ns PECL-to-TTL propagation delay
• < 1.5ns tr / tf; PECL output
• < 1.3ns TTL-to-PECL propagation delay
Wide temperature range: 40°C to +85°C
5V power supply
QTTL output will default low with inputs left open or < 1.3V
QECL output will default high with inputs left open
Internal PECL input pulldown resistors
Available in 8-pin MSOP and SOIC packages


Pinout

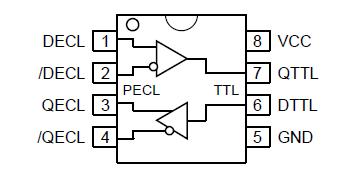

Connection Diagram


Specifications

Symbol Rating Value Unit
VCC

VIN		 Power Supply Voltage

Input Voltage		 0.5 to +7.0

0 to +6.0		 V

V
IOUT LVPECL Output Current Continuous

Surge		 50

100		 mV
TA


Tstore		 Operating Temperature Range


Storage Temperature Range		 40 to +85


65 to +150		 °C

°C

°C
JA Package Thermal Resistance Still-Air (SOIC)

(Junction-to-Ambient) 500lfpm (SOIC)

Still-Air (MSOP)

500lfpm (MSOP)		 160

109

206

155		 °C/W



°C/W

JC Package Thermal Resistance (SOIC)

(Junction-to-Case) (MSOP)		 39

39		 °C/W


NOTE:
1. Permanent device damage may occur if ABSOLUTE MAXIMUM RATINGS are exceeded. This is a stress rating only and functional operation is not implied at conditions other than those detailed in the operational sections of this data sheet. Exposure to ABSOLUTE MAXIMUM RATlNG conditions for extended periods may affect device reliability.




Description

The SY10/SY100ELT28 is a differential PECL-to-TTL translator and a TTL-to-differential PECL translator in a single package. Because PECL (Positive ECL) levels are used, only +5V and ground are required. The small outline 8-pin package and the dual translation design of the ELT28 makes SY100ELT28 ideal for applications which are sending and receiving signals across a backplane.
