Product Details

Description



Features:

·TrenchFET® Power MOSFETS
·Fast Switching Speed
· Low Gate Charge


Application

· DC-DC Logic Level
·Low Voltage and Battery Powered Applications

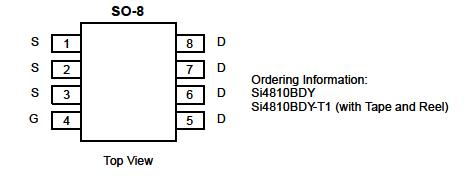

Pinout

Connection Diagram


Specifications

Parameter   Symbol 10 sec Steady State Unit
Drain-Source Voltage (MOSFET) VDS 30 V
Reverse Voltage (Schottky) 30
Gate-Source Voltage (MOSFET) VGS ±20
Continuous Drain Current (TJ = 150 ) (MOSFET)a TA = 25 ID 10 7.5 A
TA = 70 8 6
Pulsed Drain Current (MOSFET)   IDM 50
Continuous Source Current (MOSFET Diode Conduction)a   IS 2.3 1.25
Average Foward Current (Schottky) IF 3.8 2.4
Pulsed Foward Current (Schottky) IFM 40
Maximum Power Dissipation (MOSFET)a TA = 25 PD 2.5 1.38 W
TA = 70 1.6 0.88
Maximum Power Dissipation (Schottky)a TA = 25 2.0 1.31
TA = 70 1.3 0.84
Operating Junction and Storage Temperature Range   TJ, Tstg -55 to 150
