SI4816DY

MOSFET 30V 6.3/10A

product image

SI4816DY Picture
See larger image
SeekIC No. : 00166844 Detail

SI4816DY: MOSFET 30V 6.3/10A

SI4816DY Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SI4816DY
Mfg:
Vishay/Siliconix
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : N-Channel Drain-Source Breakdown Voltage : 30 V
Gate-Source Breakdown Voltage : 20 V Continuous Drain Current : 5.3 A, 7.7 A
Resistance Drain-Source RDS (on) : 22 mOhms, 13 mOhms Configuration : Dual
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : SO-8

Description

Packaging :
Transistor Polarity : N-Channel
Mounting Style : SMD/SMT
Package / Case : SO-8
Drain-Source Breakdown Voltage : 30 V
Maximum Operating Temperature : + 150 C
Gate-Source Breakdown Voltage : 20 V
Configuration : Dual
Continuous Drain Current : 5.3 A, 7.7 A
Resistance Drain-Source RDS (on) : 22 mOhms, 13 mOhms


Features:

· LITTLE FOOT® Plus Power MOSFET
·100% Rg Tested


Pinout

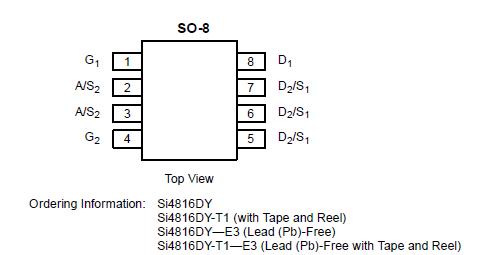

Connection Diagram


Specifications

Parameter Symbol Channel-1 Channel-2 Unit
10 secs Steady State 10 secs Steady State
Drain-Source Voltage VDS 30 V
Gate-Source Voltage VGS 20
Continuous Drain Current (TJ = 150)a TA = 25 ID 6.3 5.3 10 7.7 A
TA = 70 5.4 4.2 8.2 6.2
Pulsed Drain Current IDM 30 40
Continuous Source Current (Diode Conduction)a IS 1.3 0.9 2.2 1.15
Avalanche Currentb L = 0 1 mH IAS 12 25
Single Pulse Avalanche Energyb EAS 7.2 31.25 mJ
Maximum Power Dissipationa TA = 25 PD 1.4 1.0 2.4 1.25 W
TA = 70 0.9 0.64 1.5 0.8
Operating Junction and Storage Temperature Range TJ, Tstg --55 to 150
