SI4852DY

MOSFET 30V 15A 3.1W

product image

SI4852DY Picture
See larger image
SeekIC No. : 00164981 Detail

SI4852DY: MOSFET 30V 15A 3.1W

SI4852DY Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SI4852DY
Mfg:
Vishay/Siliconix
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : N-Channel Drain-Source Breakdown Voltage : 30 V
Gate-Source Breakdown Voltage : +/- 20 V Continuous Drain Current : 8.7 A
Resistance Drain-Source RDS (on) : 12 mOhms Configuration : Single
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : SO-8

Description

Packaging :
Transistor Polarity : N-Channel
Gate-Source Breakdown Voltage : +/- 20 V
Configuration : Single
Mounting Style : SMD/SMT
Package / Case : SO-8
Drain-Source Breakdown Voltage : 30 V
Maximum Operating Temperature : + 150 C
Continuous Drain Current : 8.7 A
Resistance Drain-Source RDS (on) : 12 mOhms


Features:

·LITTLE FOOT®Plus
·100% Rg Tested

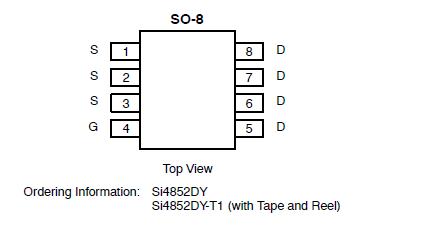

Pinout

Connection Diagram


Specifications

Parameter   Symbol 10 sec Steady State Unit
Drain-Source Voltage (MOSFET) VDS 30 V
Reverse Voltage (Schottky) 30
Gate-Source Voltage (MOSFET) VGS ±20
Continuous Drain Current (TJ = 150 ) (MOSFET)a TA = 25 ID 11 8.7 A
TA = 70 9.0 7.0
Pulsed Drain Current (MOSFET)   IDM 50
Continuous Source Current (MOSFET Diode Conduction)a   IS 2.3 1.3
Average Foward Current (Schottky) IF 4.0 2.5
Pulsed Foward Current (Schottky) IFM 50
Maximum Power Dissipation (MOSFET)a TA = 25 PD 2.5 1.47 W
TA = 70 1.6 0.94
Maximum Power Dissipation (Schottky)a TA = 25 2.27 1.38
TA = 70 1.45 0.88
Operating Junction and Storage Temperature Range   TJ, Tstg -55 to 150
