SI4890DY

MOSFET 30V 11A 2.5W

product image

SI4890DY Picture
See larger image
SeekIC No. : 00166552 Detail

SI4890DY: MOSFET 30V 11A 2.5W

SI4890DY Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SI4890DY
Mfg:
Vishay/Siliconix
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : N-Channel Drain-Source Breakdown Voltage : 30 V
Gate-Source Breakdown Voltage : +/- 25 V Continuous Drain Current : 11 A
Resistance Drain-Source RDS (on) : 12 mOhms Configuration : Single
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : SOIC-8 Narrow

Description

Packaging :
Transistor Polarity : N-Channel
Configuration : Single
Mounting Style : SMD/SMT
Drain-Source Breakdown Voltage : 30 V
Maximum Operating Temperature : + 150 C
Package / Case : SOIC-8 Narrow
Continuous Drain Current : 11 A
Gate-Source Breakdown Voltage : +/- 25 V
Resistance Drain-Source RDS (on) : 12 mOhms

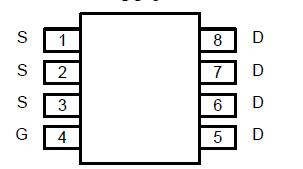

Pinout

Connection Diagram


Specifications

Parameter Symbol Limit Unit
Drain-Source Voltage VDS 30 V
Gate-Source Voltage VGS ±25
Continuous Drain Current (TJ = 150°C)a TA = 25°C ID ±11 A
TA = 70°C ±9
Pulsed Drain Current(10 s Pulse Width) IDM ±50
Continuous Source Current (Diode Conduction)a IS 2.3
Maximum Power Dissipationa TA = 25°C PD 2.5 W
TA = 70°C 1.6
Operating Junction and Storage Temperature Range TJ, Tstg 55 to 150 °C
