Product Details

Description



Features:

· TrenchFET Power MOSFET
· Advanced High Cell Density Process


Application

· Load Switches
- Notebook PCs
- Desktop PCs
- Game Stations
· Battery Switch

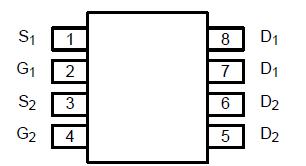

Pinout

Connection Diagram


Specifications

Parameter Symbol 10 secs Steady State Unit
Drain-Source Voltage VDS -30 V
Gate-Source Voltage VGS ±20
Continuous Drain Current (TJ = 150°C)a TA = 25°C ID -8.3 -6.2 A
TA = 70°C -6.6 -5.0
Pulsed Drain Current IDM -30
Continuous Source Current (Diode Conduction)a IS 1.7 -0.9
Maximum Power Dissipationa TA = 25°C PD 2.0 1.1 W
TA = 70°C 1.3 0.7
Operating Junction and Storage Temperature Range TJ, Tstg 55 to 150 °C
