Si9114A

Features: ·15- to 200-V Input Range· Current-Mode Control· Internal Start-Up Circuit· Latched SHUTDOWN· Soft-Start· 1.8-MHz Error Amp PinoutSpecificationsVoltages Referenced to −VINVCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ....

product image

Si9114A Picture
See larger image
SeekIC No. : 004490888 Detail

Si9114A: Features: ·15- to 200-V Input Range· Current-Mode Control· Internal Start-Up Circuit· Latched SHUTDOWN· Soft-Start· 1.8-MHz Error Amp PinoutSpecificationsVoltages Referenced to −VINVCC . . . ....

Si9114A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
Si9114A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·15- to 200-V Input Range
· Current-Mode Control
· Internal Start-Up Circuit
· Latched SHUTDOWN
· Soft-Start
· 1.8-MHz Error Amp


Pinout

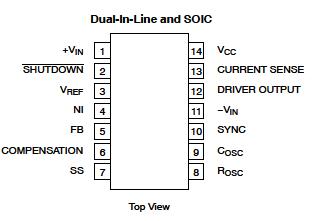

Connection Diagram


Specifications

Voltages Referenced to −VIN
VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 V
+VIN (Note: VCC < +VIN + 0.3 V) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 V
Logic Input (SHUTDOWN, SYNC) . . . . . . . . . . . . . . . . −0.3 V to VCC + 0.3 V
Linear Inputs (FEEDBACK, SENSE,
SOFT-START) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.3 V to VCC + 0.3 V
HV Pre-Regulator Input Current (continuous) . . . . . . . . . . . . . . . . . . . . . 5 mA
Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −65 to 150
Operating Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −40 to 85
Junction Temperature (TJ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Power Dissipation (Package)a
14-Pin Plastic Dip (J Suffix)b . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 750 mW
14-Pin SOIC (Y Suffix)c . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 900 mW
Thermal Impedance(JA)
14-Pin Plastic Dip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167/W
14-Pin SOIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140/W
Notes
a. Device mounted with all leads soldered or welded to PC board.
b. Derate 6 mW/ above 25.
c. Derate 7.2 mW/ above 25.


Description

The Si9114A is a BiC/DMOS current-mode pulse width modulation (PWM) controller IC for high-frequency dc/dc converters. Single-ended topologies (forward and flyback) can be implemented at frequencies up to 1 MHz. The oscillator has an internal divide-by-two that limits the duty ratio to 50%. An oscillator sync output allows converters to be synchronized in phase as well as in frequency, in a master/slave configuration.

The output inverter Si9114A  can typically source 500 mA and sink 700 mA. Shoot-through current is all but eliminated to minimize supply current requirements.

The high-voltage DMOS transistor Si9114A  allows the IC to interface directly to bus voltages up to 200 V. Other features include a 1.5% accurate voltage reference, 1.8-MHz (min) bandwidth error amplifier, shutdown logic control, soft-start and undervoltage lockout circuits.

The Si9114A is available in both standard and lead (Pb)-free 14-pin plastic DIP and SOIC packages, and is specified over the industrial, D suffix (−40 to 85 temperature range.
