Si9130

Features: ` Fixed 5-V and Programmable 3.3-V, 3.45 V, or 3.6 V Step-DownConverters` Less than 500-A Quiescent Current per Converter` 25-A Shutdown Current`5.5-V to 30-V Operating RangePinoutSpecificationsV+ to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...

product image

Si9130 Picture
See larger image
SeekIC No. : 004490898 Detail

Si9130: Features: ` Fixed 5-V and Programmable 3.3-V, 3.45 V, or 3.6 V Step-DownConverters` Less than 500-A Quiescent Current per Converter` 25-A Shutdown Current`5.5-V to 30-V Operating RangePinoutSpecific...

Si9130 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
Si9130
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Fixed 5-V and Programmable 3.3-V, 3.45 V, or 3.6 V Step-Down
Converters
` Less than 500-A Quiescent Current per Converter
` 25-A Shutdown Current
`5.5-V to 30-V Operating Range




Pinout

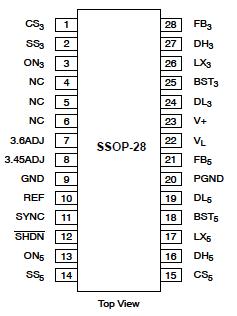

Connection Diagram




Specifications

V+ to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 V t0 36 V
PGND to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 V
VL to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 V to 7 V
BST3, BST5 to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 V to 36 V
LX3 to BST3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -7 V to 0.3 V
LX5 to BST5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -7 V to 0.3 V
Inputs/Outputs to GND
(3.45ADJ, 3.6ADJ, SHDN, ON5, REF, SS5, CS5. FB5, SYNC, CS3, FB3, SS3,
ON3)) -0.3 V, (VL + 0.3 V)
DL3, DL5 to PGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 V, (VL + 0.3 V)
DH3 to LX3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 V (BST3 + 0.3 )
DH5 to LX5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 V (BST5 + 0.3 )
REF, VL Short to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Momentary
REF Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 mA
VL Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 mA
Continuous Power Dissipation (TA = 70a
28-Pin SSOPb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 762 mW
Operating Temperature Range:
Si9130CG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 to 70
Si9130LG. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −10 to 90.
Lead Temperature (soldering, 10 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . 300
Notes
a. Device mounted with all leads soldered or welded to PC board.
b. Derate 9.52 mW/ above 70.




Description

The Si9130 Pin-programmable Dual Controller for Portable PCs is a pin-programmable version of the Si786 dual-output power supply controller for notebook computers. The Buck controllers provide 5 V and a pin-programmable output delivering 3.3 V, 3.45 V, or 3.6 V.

The circuit is a system level integration of two step-down controllers and micropower 5-V and 3.3-V linear regulators.

The controllers Si9130 perform high efficiency conversion of the battery pack energy (typically 12 V) or the output of an ac to dc wall converter (typically 18-V to 24-V dc) to 5-V and 3.3-V system supply voltages. The micropower linear regulator can be used to keep power management and back-up circuitry alive during the shutdown of the step-down converters.

A complete power conversion and management system can be implemented with the Si9130 Pin-programmable Dual Controller for Portable PCs, an inexpensive linear regulator, the Si9140 SMP Controller for High Performance Processor Power Supplies, five Si4410 n-channel TrenchFET® Power MOSFETs, one Si4435 p-channel TrenchFET Power MOSFET, and two Si9712 PC Card (PCMCIA) Interface Switches.

The Si9130 is available in both standard and lead (Pb)-free 28-pin SSOP packages and specified to operate over the commercial (0 to 70) and extended commercial (−10 to 90) temperature ranges. See Ordering Information for corresponding part numbers.
