Si9136

Features: · Up to 95% Efficiency· 3% Total Regulation (Each Controller)· 5.5-V to 30-V Input Voltage Range· 3.3-V, 5-V, and 12-V Outputs· 200-kHz Low-Noise Fixed Frequency Operation· Precision 3.3-V Reference Output· 30 mA Linear Regulator Output· High Efficiency Pulse Skipping Mode Operation atLi...

product image

Si9136 Picture
See larger image
SeekIC No. : 004490900 Detail

Si9136: Features: · Up to 95% Efficiency· 3% Total Regulation (Each Controller)· 5.5-V to 30-V Input Voltage Range· 3.3-V, 5-V, and 12-V Outputs· 200-kHz Low-Noise Fixed Frequency Operation· Precision 3.3-V...

Si9136 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
Si9136
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Up to 95% Efficiency
· 3% Total Regulation (Each Controller)
· 5.5-V to 30-V Input Voltage Range
· 3.3-V, 5-V, and 12-V Outputs
· 200-kHz Low-Noise Fixed Frequency Operation
· Precision 3.3-V Reference Output
· 30 mA Linear Regulator Output
· High Efficiency Pulse Skipping Mode Operation at
Light Load
· Only Three Inductors Required'No Transformer
· LITTLE FOOT Optimized Output Drivers
· Internal Soft-Start
· Minimal External Control Components
· 28-Pin SSOP Package




Pinout

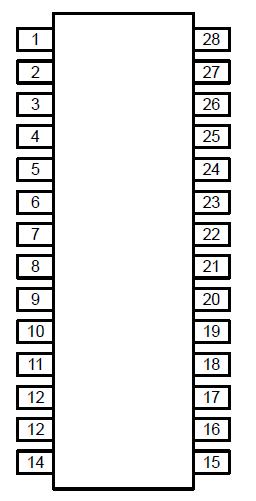

Connection Diagram




Specifications

VIN to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 to +36 V
PGND to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±2 V
VL to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 to +6.5 V
BST3, BST5, BSTFY to GND . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +36 V
VL Short to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Continuous
LX3 to BST3; LX5 to BST5; LXFY to BST . . . . . . . . . . . . . . . . . 6.5 V to 0.3 V
Inputs/Outputs to GND
(CS3, CS5, CSP, CSN) . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to (VL +0.3 V)
5 ON/OFF, 3 ON/OFF, 12 ON/OFF . . . . . . . . . . . . . . . . . . . . . 0.3 V to +5.5 V
DL3, DL5 to PGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to (VL +0.3 V)
DLFY to PGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Input of Flyback
DH3 to LX3, DH5 to LX5,
DHFY to LXFY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to (BSTX +0.3 V)
Continuous Power Dissipation (TA = 90)a
28-Pin SSOPb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 572 mW
Operating Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 to 90
Storage Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . 40 to 125
Lead Temperature (Soldering, 10 Sec.) . . . . . . . . . . . . . . . . . . . . . . . . 300
Notes
a. Device mounted with all leads soldered or welded to PC board.
b. Derate 9.52 mW/ above 90.




Description

The Si9136 is a current-mode PWM and PSM converter controller, with two synchronous buck converters (3.3 V and 5 V) and a flyback (non-isolated buck-boost) converter (12 V).
Designed for portable devices, it offers a total five power outputs (three tightly regulated dc/dc converter outputs, a precision 3.3-V reference and a 5-V LDO output). It requires minimum external components and is capable of achieving conversion efficiencies approaching 95%.

The Si9136 is available in a 28-pin SSOP package and specified to operate over the extended commercial (0 to 90) temperature range.
