Si9139

Features: · Five Output 50-W, Triple Output DC-DC-Controller· Up to 95% Efficiency· ±3% Total Regulation (Line, Load and Temperature)· 4.5-V to 30-V Input Voltage Range· Two Fixed 1.5-V, 1.8-V, 2.0-V, 2.2-V, 2.5-V, 2.8-V, 3.3-V Outputs· One Adjustable 1.24-V to 20-V Output· 3.3-V Reference Output·...

product image

Si9139 Picture
See larger image
SeekIC No. : 004490903 Detail

Si9139: Features: · Five Output 50-W, Triple Output DC-DC-Controller· Up to 95% Efficiency· ±3% Total Regulation (Line, Load and Temperature)· 4.5-V to 30-V Input Voltage Range· Two Fixed 1.5-V, 1.8-V, 2.0-...

Si9139 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
Si9139
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Five Output 50-W, Triple Output DC-DC-Controller
· Up to 95% Efficiency
· ±3% Total Regulation (Line, Load and Temperature)
· 4.5-V to 30-V Input Voltage Range
· Two Fixed 1.5-V, 1.8-V, 2.0-V, 2.2-V, 2.5-V, 2.8-V, 3.3-V Outputs
· One Adjustable 1.24-V to 20-V Output
· 3.3-V Reference Output
· 5-V/30-mA Linear Regulator Output
· Individual ON/OFF Control for A and B Outputs
· 300-kHz Low-Noise Fixed Frequency Operation
· High Efficiency Pulse Skipping Mode Operation at Light Load
· Only Three Inductors RequiredNo Transformer
· LITTLE FOOT® Optimized Output Drivers
· Internal Under Voltage Lockout and Soft-Start
· Minimum Number of External Control Components
· 28-Pin SSOP Package
· Output Overvoltage Protection
· Output Undervoltage Shutdown
· Power-Good Output(RESET)




Application

· Notebook and Subnotebook Computers
· PDAs and Mobile Communicators
· Portable Display
· Multimedia Set-Top Box
· Telecommunications Infrastructure
· Network Equipment
· Distributed Power Conversion




Pinout

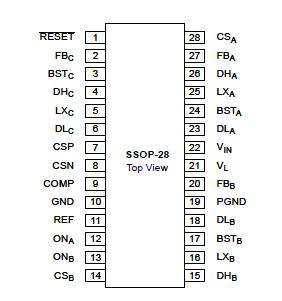

Connection Diagram




Specifications

VIN to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 to +36 V
PGND to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±2 V
VL to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 to +6.5 V
BSTA, BSTB, BSTC to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 V to +36 V
VL Short to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Continuous
LXA to BSTA; LXB to BSTB; LXC to BSTC . . . . . . . . . . . . . . . . . -6.5 V to 0.3 V
Inputs/Outputs to GND
(CSA, CSB, CSP, CSN) . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 V to (VL +0.3 V)
RESET, ONA, ONB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 V to +5.5 V
DLA, DLB, DLC to PGND . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 V to (VL +0.3 V)
DHA to LXA, DHB to LXB,
DHC to LXC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 V to (BSTx +0.3 V)
Continuous Power Dissipation (TA = 70)a
28-Pin SSOPb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 762 mW
Operating Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . -40 to 85
Storage Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . -40 to 125
Lead Temperature (Soldering, 10 Sec.) . . . . . . . . . . . . . . . . . . . . . . . . . . 300
Notes
a. Device mounted with all leads soldered or welded to PC board.
b. Derate 9.52 mW/ above 70.




Description

The Si9139 is current-mode PWM and PSM converter controller, with two high current, high efficiency synchronous buck controllers and an adjustable buck-boost controller whose output can be set between 1.24 V and 20 V with an external resistor divider. Designed for fixed and portable devices, it offers a total of five power outputs (three tightly regulated dc/dc converter outputs, a precision 3.3-V reference and a 5-V LDO output. Individually controlled power-up sequencing, power-good signal with delay, internal frequency compensation networks and automatic boot-strapping simplify the system by minimizing the number of external components while achieving conversion efficiencies approaching 95%.

The Si9139 is available in a 28-pin SSOP package and specified to operate over the extended commercial (-40 to 85) temperature range.
