Si9182

Features: ` Low 105-mV Dropout at 250-mA Load` Guaranteed 250-mA Output Current` 500-mA Peak Output Current Capability` Uses Low ESR Ceramic Output Capacitor` Fast Load and Line Transient Response` Only 100-V(rms) Noise With Noise BypassCapacitor`1-A Maximum Shutdown Current` Built-in Short Circu...

product image

Si9182 Picture
See larger image
SeekIC No. : 004490923 Detail

Si9182: Features: ` Low 105-mV Dropout at 250-mA Load` Guaranteed 250-mA Output Current` 500-mA Peak Output Current Capability` Uses Low ESR Ceramic Output Capacitor` Fast Load and Line Transient Response` ...

Si9182 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
Si9182
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Low 105-mV Dropout at 250-mA Load
` Guaranteed 250-mA Output Current
` 500-mA Peak Output Current Capability
` Uses Low ESR Ceramic Output Capacitor
` Fast Load and Line Transient Response
` Only 100-V(rms) Noise With Noise Bypass
Capacitor
`1-A Maximum Shutdown Current
` Built-in Short Circuit and Thermal Protection
` Out-Of-Regulation Error Flag (Power Good or POR)
` Fixed 1.215-V, 1.5-V, 1.8-V, 2.0-V, 2.5-V, 2.8-V,
2.85-V, 2.9-V, 3.0-V, 3.3-V, 5.0-V, or Adjustable
Output Voltage Options
` Other Output Voltages Available by Special Order




Application

· Cellular Phones
· Laptop and Palm Computers
· PDA, Digital Still Cameras




Pinout

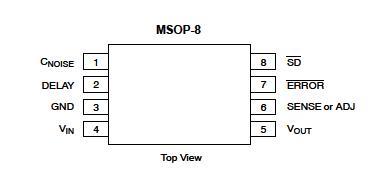

Connection Diagram




Specifications

Input Voltage, VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.5 V
SDInput Voltage, VSD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.3 V to VIN
Output Current, IOUT . . . . . . . . . . . . . . . . . . . . . . . . . . Short Circuit Protected
Output Voltage, VOUT . . . . . . . . . . . . . . . . . . . . . . . . −0.3 V to VO(nom) + 0.3 V
Maximum Junction Temperature, TJ(max) . . . . . . . . . . . . . . . . . . . . . . . 150
Storage Temperature, TSTG . . . . . . . . . . . . . . . . . . . . . . . . . . −55to 150
ESD (Human Body Model) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 kV
Power Dissipation (Package)a
8-Pin MSOP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 666 mW
Thermal Impedance (JA)
8-Pin MSOPb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150/W
Notes
a. Device mounted with all leads soldered or welded to PC board.
b. Derate 6.6 mW/ above TA = 25




Description

The Si9182 is a 250-mA CMOS LDO (low dropout) voltage regulator. The device features ultra low ground current and dropout voltage to prolong battery life in portable electronics. The Si9182 offers line/load transient response and ripple rejection superior to that of bipolar or BiCMOS LDO regulators. The device is designed to maintain regulation while delivering 500-mA peak current. This is useful for systems that have high surge current upon turn-on. The Si9182 is designed to drive the lower cost ceramic, as well as tantalum, output capacitors.

The device is guaranteed stable from maximum load current down to 0-mA load. In addition, an external noise bypass capacitor connected to the device's CNOISE pin will lower the LDO's output noise for low noise applications.The Si9182 also includes an out-of-regulation error flag. When the output voltage is 5% below its nominal output voltage, the error flag output goes low. If a capacitor is connected to the device's delay pin, the error flag output pin will generate a delayed power-on-reset signal.

The Si9182 is available in both standard and lead (Pb)-free MSOP-8 packages and is specified to operate over the industrial temperature range of −40 to 85.
