Product Details

Description



Features:

· TrenchFET® Power MOSFETS

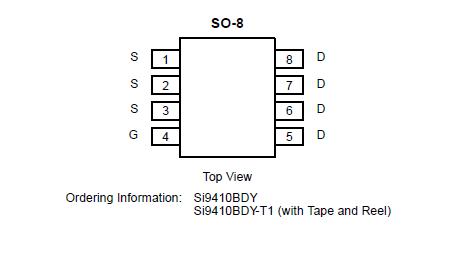

Pinout

Connection Diagram


Specifications

Parameter
Symbol 10 secs Steady State Unit
Drain-Source Voltage VDS 30 V
Gate-Source Voltage VGS ±20
Continuous Drain Current (TJ = 150)a TA = 25 ID 8.1 6.2 A
TA = 70 6.5 5.0
Pulsed Drain Current IDM 30
continuous Source Current (Diode Conduction)a IS 2.1 1.2
Maximum Power Dissipationa TA = 25 PD 2.5 1.5 W
TA = 70 1.6 0.9
Operating Junction and Storage Temperature Range TJ, Tstg −55 to 150
