Purchase Si9422DY, In-stock Si9422DY From SeekIC.
MFG:43 Package Cooled:VISHAY
- Table of contents:
Si9422DY
-
Suppliers
DataSheet
General Description
Si9422DY Maximum Ratings
| Parameter | Symbol | Limit | Unit | |
| Drain-Source Voltage | VDS | 200 | V | |
| Gate-Source Voltage | VGS | ±20 | ||
| Continuous Drain Current (TJ = 175°C)a | TA = 25°C | ID | ±1.7 | A |
| TA = 70°C | ±1.3 | |||
| Pulsed Drain Current(10 s Pulse Width) | IDM | ±12 | ||
| Avalanche Current | L = 0.1 mH | IAS | ±12.5 | |
| Single Avalanche Energy | EAS | 8 | ||
| Continuous Source Current (Diode Conduction)a | IS | 2.1 | ||
| Maximum Power DissipationaMOSFET)a, b | TA = 25°C | PD | 2.5 | W |
| TA = 70°C | 1.6 | |||
| Operating Junction and Storage Temperature Range | TJ, Tstg | 55 to 150 | °C | |

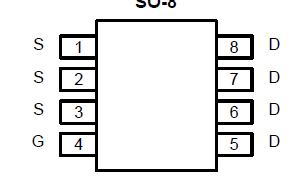

Si9422DY Connection Diagram
SI9422DY
PDF/DataSheet Download
- Datasheet: SI9422DY
- File Size: 54278 KB
- Manufacturer: VISAY [Vishay Siliconix]
- Click here to Download
