Purchase Si9433BDY, In-stock Si9433BDY From SeekIC.
MFG:VISHAY Package Cooled:SOP-8 D/C:09+
- Table of contents:
Si9433BDY
-
Suppliers
DataSheet
General Description
Si9433BDY Maximum Ratings
|
|
Symbol | 10 secs | Steady State | Unit | |
| Drain-Source Voltage | VDS | −20 | V | ||
| Gate-Source Voltage | VGS | ±12 | |||
| Continuous Drain Current (TJ = 150)a | TA = 25 | ID | −6.2 | −4.5 | A |
| TA = 70 | −5.0 | −3.5 | |||
| Pulsed Drain Current | IDM | −20 | |||
| continuous Source Current (Diode Conduction)a | IS | −2.3 | −1.2 | ||
| Maximum Power Dissipationa | TA = 25 | PD | 2.5 | 1.3 | W |
| TA = 70 | 1.6 | 0.8 | |||
| Operating Junction and Storage Temperature Range | TJ, Tstg | −55 to 150 | |||

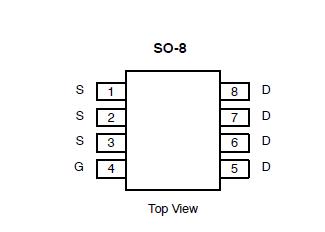

Si9433BDY Connection Diagram
SI9433BDY
PDF/DataSheet Download
- Datasheet: SI9433BDY
- File Size: 69698 KB
- Manufacturer: VISAY [Vishay Siliconix]
- Click here to Download
