T2803

Features: • Supply-voltage Range 3 V to 4.6 V (Regulated)• Auxiliary Voltage Regulator On-chip (3.2 V to 4.6 V)• Low Current Consumption• Few Low-cost External Components• No Mechanical Tuning Required• Supports Multiple Reference Clocks (10.368 MHz/13.824 MHz)&...

product image

T2803 Picture
See larger image
SeekIC No. : 004511059 Detail

T2803: Features: • Supply-voltage Range 3 V to 4.6 V (Regulated)• Auxiliary Voltage Regulator On-chip (3.2 V to 4.6 V)• Low Current Consumption• Few Low-cost External ComponentsR...

T2803 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
T2803
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Supply-voltage Range 3 V to 4.6 V (Regulated)
• Auxiliary Voltage Regulator On-chip (3.2 V to 4.6 V)
• Low Current Consumption
• Few Low-cost External Components
• No Mechanical Tuning Required
• Supports Multiple Reference Clocks (10.368 MHz/13.824 MHz)
• Fast Settling Synthesizer (864 kHz Channel Spacing)
• TX Preamplifier with 3 dBm Output Power at 2.45 GHz (4 Programmable Power Levels)
• Ramp-signal Generator for Power Ramping and Power Control of External SiGe Power Amplifier (T7024 and T7026)


Pinout

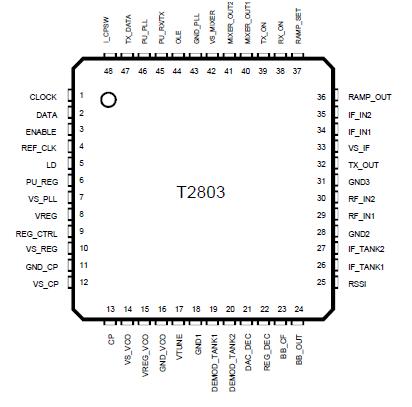

Connection Diagram


Specifications

Parameters
Pin
Symbol
Min.
Max.
Unit
Supply voltage regulator
10
VS_REG
3.2
4.7
V
Supply voltage
7, 12, 14, 33, 42
VS
3.0
4.7
V
Logic input voltage
1, 2, 3, 38, 39,
44-48
VIN
-0.3
VS
V
Junction temperature
Tjmax
150
°C
Storage temperature
Tstg
-40
150
°C



Description

The T2803 is an RF IC for low-power applications in the 2.45 GHz ISM band. The QFN48-packaged IC is a complete transceiver including image rejection mixer, IF amplifier, FM demodulator, baseband filter, RSSI, TX preamplifier, power-ramping generator for power amplifiers, integrated synthesizer, T2803 fully integrated VCO and Gaussian data filter for TX. No mechanical tuning is necessary in production.
