Features:

· Fast Access times: 5, 6, 7, and 8ns
· Fast clock speed: 100, 83, 66, and 50 MHz
· Provide high performance 3-1-1-1 access rate
· Fast  OE  access times: 5 and 6ns
· Single 3.3V +10% / -5V power supply
· Common data inputs and data outputs
· BYTE WRITE ENABLE and GLOBAL WRITE control
· Five chip enables for depth expansion and address pipelining
· Address, control, input, and output pipelined registers
· Internally self -timed WRITE cycle
· WRITE pass-through capability
· Burst control pins ( interleaved or linear burst sequence)
· High density, high speed packages
· Low capacitive bus loading
· High 30pF output drive capability at rated access time
· SNOOZE MODE for reduced power standby
· Single cycle disable ( PentiumTM BSRAM compatible )




Pinout

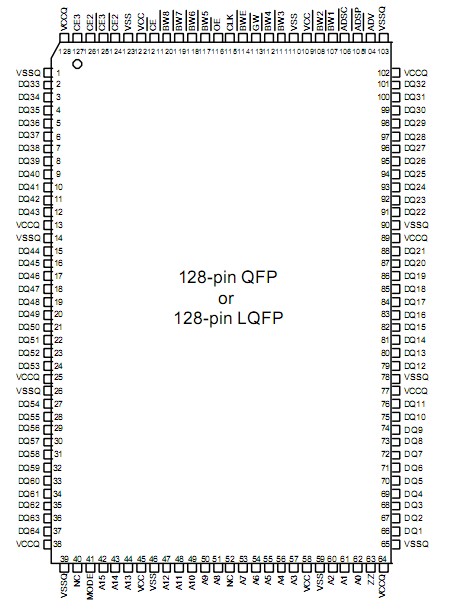

  Connection Diagram


Specifications

Voltage on Vcc Supply Relative to Vss..
                                    ...-0.5V to +4.6V
I/O Supply Voltage VccQ .............-0.5V to Vcc
VIN (inputs)............................ -0.5V to Vcc +0.5V
Storage Temperature (plastic)...... -55 to +150
Junction Temperature ............................ +150
Power Dissipation .........................................1.6W
Short Circuit Output Current...................... 100mA



Description

The Taiwan Memory Technology Synchronous Burst RAM T35L6464A family employs high-speed, low power CMOS design using advanced triple-layer polysilicon,double-layer metal technology. Each memory cell consists of four transistors and two high valued resistors.

The T35L6464A SRAM integrates 65536 x 64 SRAM cells with advanced synchronous peripheral circuitry and a 2-bit counter for internal burst operation. All synchronous inputs are gated by registers controlled by a positive-edge-triggered clock input (CLK). The synchronous inputs of T35L6464A include all addresses, all data inputs, address-pipelining chip enable ( CE ), depth-expansion chip enables (CE2 and CE2), burst control inputs (ADSC , ADSP , and ADV ), write enables (BW1 , BW2 , BW3 , BW4 , and BWE ), and global write (GW ).

Asynchronous inputs of T35L6464A include the output enable (OE ), Snooze enable (ZZ) and burst mode control (MODE). The data outputs (Q), enabled by OE , are also asynchronous.

Addresses and chip of T35L6464A enables are registered with either address status processor (ADSP ) or address status controller (ADSC ) input pins. Subsequent burst addresses can be internally generated as controlled by the burst advance pin (ADV ).

Address and write controls of T35L6464A are registered on-chip to initiate self-timed WRITE cycle. WRITE cycles can be one to four bytes wide as controlled by the write control inputs. Individual byte write allows individual byte to be written. BW1 controls DQ1-DQ8. BW2 controls DQ9-DQ16. BW3 controls DQ17-DQ 24. BW4 controls DQ25-DQ32. BW1 , BW2 , BW3 , and BW4 can be active only with BWE being LOW. GW being LOW causes all bytes to be written. WRITE pass-through capability allows written data of T35L6464A available at the output for the immediately next READ cycle. T35L6464A also incorporates pipelined enable circuit for easy depth expansion without penalizing system performance.
