TC58NS128DC

Features: • Organization Memory cell array 528 × 32K × 8 Register528 × 8 Page size528 bytes Block size (16K + 512) bytes• Modes Read, Reset, Auto Page Program, Auto Block Erase, Status Read• Mode control Serial input/output, Command control• Complies with the SmartMediaTM E...

product image

TC58NS128DC Picture
See larger image
SeekIC No. : 004514206 Detail

TC58NS128DC: Features: • Organization Memory cell array 528 × 32K × 8 Register528 × 8 Page size528 bytes Block size (16K + 512) bytes• Modes Read, Reset, Auto Page Program, Auto Block Erase, Status R...

TC58NS128DC Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TC58NS128DC
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Organization
   Memory cell array      528 × 32K × 8
   Register                    528 × 8
   Page size                  528 bytes
   Block size                  (16K + 512) bytes
• Modes
   Read, Reset, Auto Page Program,
   Auto Block Erase, Status Read
• Mode control Serial input/output, Command control
• Complies with the SmartMediaTM Electrical Specification and Data Format Specification issued by the SSFDC Forum
• Power supply VCC = 3.3 V ± 0.3 V
• Access time
   Cell array-register       25 µs max
   Serial Read cycle         50 ns min
• Operating current
   Read (50-ns cycle)      10 mA typ.
   Program (avg.)           10 mA typ.
   Erase (avg.)               10 mA typ.
   Standby                     100 µA max
• Package TC58NS128DC: FDC-22A (Weight: 1.8 g typ.)


Pinout

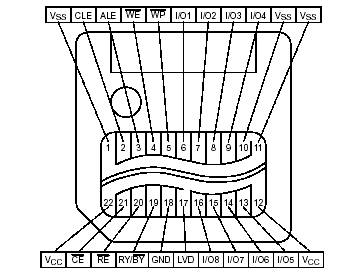

Connection Diagram


Specifications

SYMBOL
PARAMETER
RATING
Unit
VCC
 Power Supply Voltage
−0.6~4.6
V
VIN
 Input Voltage
−0.6~4.6
V
VI/O
 Input/Output Voltage
−0.6 V~VCC + 0.3 V ( 4.6 V)
V
PD
 Power Dissipation
0.3
W
Tstg
 Storage Temperature
−20~65
Topr
 Operating Temperature
0~55




Description

The TC58NS128DC is a single 3.3-V 128-Mbit (138,412,032) bit NAND Electrically Erasable and Programmable Read-Only Memory (NAND E2PROM) organized as 528 bytes × 32 pages × 1024 blocks. The TC58NS128DC has a 528-byte static register which allows program and read data to be transferred between the register and the memory cell array in 528-byte increments. The Erase operation is implemented in a single block unit (16 Kbytes + 512 bytes: 528 bytes × 32 pages).

The TC58NS128DC is a serial-type memory device which utilizes the I/O pins for both address and data input/output as well as for command inputs. The Erase and Program operations are automatically executed.

The TC58NS128DC is a SmartMediaTM with ID and each device has 128 bit unique ID number embedded in the device. This unique ID number is applicable to image files, music files, electronic books, and so on where copyright protection is required.

The data stored in the TC58NS128DC needs to comply with the data format standardized by the SSFDC Forum in order to maintain compatibility with other SmartMediaTM systems.
