General Description
TC826 General Description
In many applications, a graphical display is preferred over a digital display. Knowing a process or system operates, for example, within design limits is more valuable than a direct system variable read out. A bar or moving dot display supplies information precisely without requiring further interpretation by the viewer.
The TC826 is a complete analog-to-digital converter with direct liquid crystal (LCD) display drive. The 40 LCD data segments plus zero driver give a 2.5% resolution bar display. Full scale differential input voltage range extends from 20mV to 2V. The TC826 sensitivity is 500µV. A low drift 35ppm/°C internal reference, LCD backplane oscillator and driver, input polarity LCD driver, and over range LCD driver make designs simple and low cost. The CMOS design required only 125µA from a 9V battery. In +5V systems, a TC7660 DC to DC converter can supply the -5V supply. The differential analog input leakage is a low 10pA.
TC826 Maximum Ratings
Supply Voltage (V+ to V-) ....................................... 15V
Analog Input Voltage (Either Input) (Note 1V+ to VPower
Dissipation (TA 70°C)
64-Pin Plastic Flat Package ....................................1.14W
Operating Temperature Range:
Commercial Package (C) ........................ 0°C to +70°C
Storage Temperature Range.............. -65°C to +150°C
TC826 Features
• Bipolar A/D Conversion
• 2.5% Resolution
• Direct LCD Display Drive
• 'Thermometer' BAR or DOT Display
• 40 Data Segments Plus Zero
• Over Range Plus Polarity Indication
• Precision On-Chip Reference: 35ppm/°C
• Differential Analog Input
• Low Input Leakage: 10pA
• Display Flashes on Over Range
• Display HOLD Mode
• Auto-Zero Cycle Eliminates Zero AdjustPotentiometer
• 9V Battery Operation
• Low Power Consumption: 1.1mW
• 20mV to 2.0V Full Scale Operation
• Non-Multiplexed LCD Drive for MaximumViewing Angle
• 2.5% Resolution
• Direct LCD Display Drive
• 'Thermometer' BAR or DOT Display
• 40 Data Segments Plus Zero
• Over Range Plus Polarity Indication
• Precision On-Chip Reference: 35ppm/°C
• Differential Analog Input
• Low Input Leakage: 10pA
• Display Flashes on Over Range
• Display HOLD Mode
• Auto-Zero Cycle Eliminates Zero AdjustPotentiometer
• 9V Battery Operation
• Low Power Consumption: 1.1mW
• 20mV to 2.0V Full Scale Operation
• Non-Multiplexed LCD Drive for MaximumViewing Angle

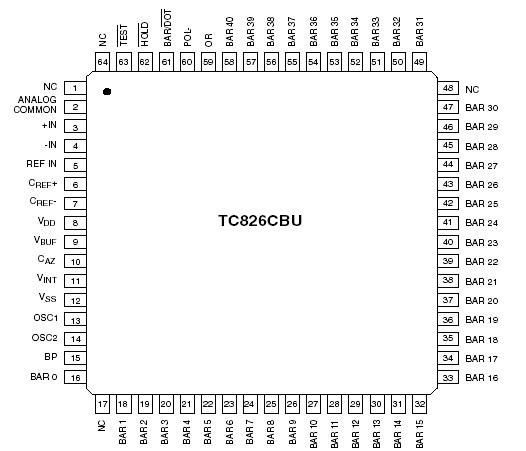

TC826 Connection Diagram
TC826
PDF/DataSheet Download
- Datasheet: TC826
- File Size: 484237 KB
- Manufacturer: TELCOM [TelCom Semiconductor, Inc]
- Click here to Download
