Description



Features:

Stand Alone Switch On A Chip



8 Ethernet 10/100/1000 ports
MII/GMII interface for all ports
Trunk group support
Four Classes of Service (CoS) selectable for
each port and/or checked via IP Header and
802.1Q VLAN Tag
Eight port-based VLANs
Maximum throughput, non head-of-line
blocking architecture
Embedded SSRAM packet buffer/address table
8K MAC address table
Each port is configurable to 10 full/half duplex,
100 full/half duplex and 1000 full duplex mode
Flow-control ability is able to set for both full
and half duplex mode
Broadcast throttling
Port Mirroring
Serial EEPROM Interface, EEPROM is optional
MDIO master for PHY configuration / polling
0.18 micron technology
2V and 3.3V dual voltage power supply
Packaged in PBGA 292
27 MHz crystal input only


Pinout

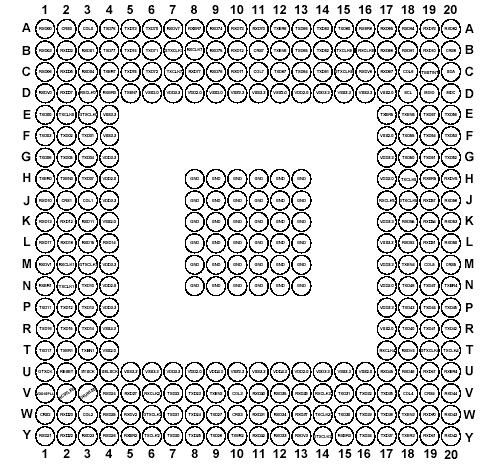

Connection Diagram


Description

TC9208M is a fully integrated 8 port 10/100/1000 smart Ethernet switch controller designed for low cost and high performance solutions. The chip embeds necessary SSRAM for packet buffering and MAC address table. TC9208M provides MII / GMII interface for all ports.

A store-and-forward switching method using a non-blocking architecture is implemented within TC9208M to improve the availability and bandwidth. The chip embeds packet buffer, which it supports normal and priority queues for each transmission port.

TC9208M provides evolved CoS with four levels of priority. The priority can be checked via layer 2 (802.1Q VLAN Tagging) and/or layer 3 (IP Header TOS bits) packets. Port based priority is also provided to ensure transmission with precedence for all packets incoming from selected port(s).
