General Description
TC9325F General Description
The TC9325F is a single-chip digital tuning system (DTS) microcontroller incorporating a 230 MHz prescaler, PLL, and LCD driver. In addition to a 20-bit IF counter, an 8-channel, 8-bit AD converter, two types of serial interface, and buzzer function, the TC9325F offers a range of functions required for DTS, including an interrupt function, an 8-bit timer-counter, and an 8-bit pulse counter. In addition, the LCD driver features six modes combining 1/4, 1/3, and 1/2 duty and 1/2 and 1/3 bias. This product is suitable for use in a wide variety of DTS systems, from automobile to home audio, including compact stereo systems.
TC9325F Features
• CMOS DTS microcontroller LSI with built-in 230 MHz prescaler, PLL, and LCD driver
• Operating voltage: PLL operating: VDD = 3.0 to 3.6 V (typ. 3.3 V)
PLL off: VDD = 3.0 to 3.6 V (when CPU only operating)
• Crystal oscillator frequency: 4.5 MHz, 75 kHz
• Current dissipation: PLL operating: IDD = 3.5 mA (typ.) (crystal oscillator frequency
PLL off: IDD = 1 mA (typ.) (crystal oscillator frequency 4.5 MHz, CPU only operating)
PLL off: IDD = 0.25 mA (typ.) (crystal oscillator frequency 75 kHz, CPU only operating)
• Operating temperature range: Ta = 40 to 85°C
• Program memory (ROM): 16 bits × 16,384 steps
• Data memory (RAM): 4 bits × 1,024 words
• Instruction execution time: 1.78 µs (crystal oscillator frequency 4.5 MHz)40 µs (crystal oscillator frequency 75 kHz)
• Stack levels: 16
• General-purpose IF counter: 20-bit (CMOS input supported)
• AD converter: 8 bits × 8 channels
• LCD driver: 1/4, 1/3, 1/2 duty, 1/2, 1/3 bias modes selectable, 136 segments maximum
• I/O ports: CMOS I/O ports: 40Output-only ports: Up to 31, input-only ports: Up to 5
• Timer-counter: 8-bit (as timer clock: INTR1, INTR2, instruction cycle, or 1 kHz selectable)
• Pulse counter: 8-bit up/down counter (input from INTR2 pin)
• Buzzer: 0.625 to 3 kHz (8 settings)Four modes: Continuous, Single-Shot, 10-Hz Intermittent, 10-Hz Intermittent at
• Interrupts: 2 external, 4 internal (three types of serial interface, 8-bit timer)Package: QFP-100 (0.65-mm pitch)
• Operating voltage: PLL operating: VDD = 3.0 to 3.6 V (typ. 3.3 V)
PLL off: VDD = 3.0 to 3.6 V (when CPU only operating)
• Crystal oscillator frequency: 4.5 MHz, 75 kHz
• Current dissipation: PLL operating: IDD = 3.5 mA (typ.) (crystal oscillator frequency
PLL off: IDD = 1 mA (typ.) (crystal oscillator frequency 4.5 MHz, CPU only operating)
PLL off: IDD = 0.25 mA (typ.) (crystal oscillator frequency 75 kHz, CPU only operating)
• Operating temperature range: Ta = 40 to 85°C
• Program memory (ROM): 16 bits × 16,384 steps
• Data memory (RAM): 4 bits × 1,024 words
• Instruction execution time: 1.78 µs (crystal oscillator frequency 4.5 MHz)40 µs (crystal oscillator frequency 75 kHz)
• Stack levels: 16
• General-purpose IF counter: 20-bit (CMOS input supported)
• AD converter: 8 bits × 8 channels
• LCD driver: 1/4, 1/3, 1/2 duty, 1/2, 1/3 bias modes selectable, 136 segments maximum
• I/O ports: CMOS I/O ports: 40Output-only ports: Up to 31, input-only ports: Up to 5
• Timer-counter: 8-bit (as timer clock: INTR1, INTR2, instruction cycle, or 1 kHz selectable)
• Pulse counter: 8-bit up/down counter (input from INTR2 pin)
• Buzzer: 0.625 to 3 kHz (8 settings)Four modes: Continuous, Single-Shot, 10-Hz Intermittent, 10-Hz Intermittent at
• Interrupts: 2 external, 4 internal (three types of serial interface, 8-bit timer)Package: QFP-100 (0.65-mm pitch)

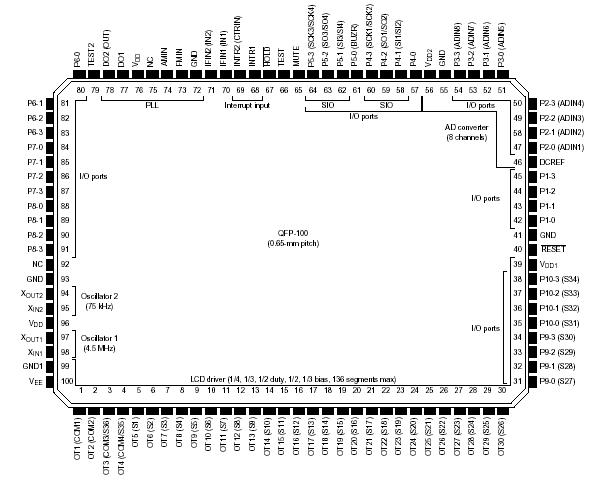

TC9325F Connection Diagram
